GW JDSTS2.EM-H3H6-A535-1-65-C-R33
LED DURIS E 5 SSL SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

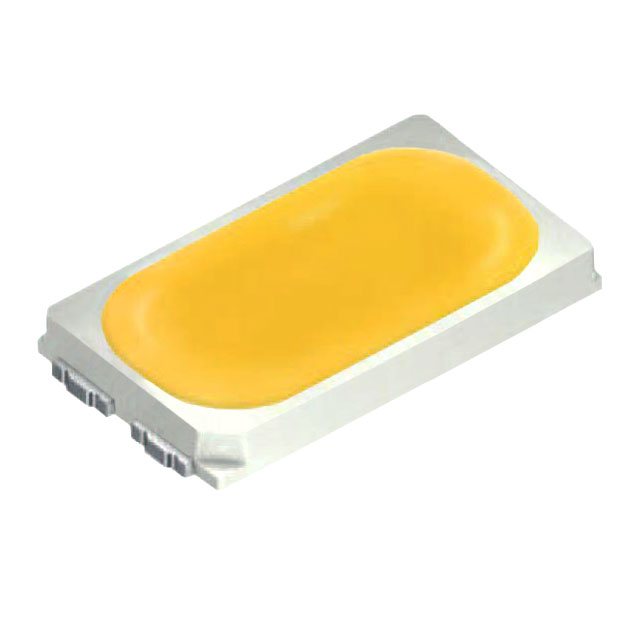

ams-OSRAM USA INC. DURIS® E 5 LED, part number GW-JDSTS2-EM-H3H6-A535-1-65-C-R33, offers neutral white illumination with a correlated color temperature (CCT) of 4000K. This Surface Mount Device (SMD) features a 120° viewing angle and is housed in a 4-SMD, Flat Leads package. Operating at a typical forward voltage of 2.87V and a test current of 65mA, this component achieves a luminous flux of 35lm with a high efficacy of 188 lm/W. The DURIS® E 5 series is engineered for applications demanding reliable and efficient solid-state lighting, including general area lighting, architectural lighting, and industrial illumination. The compact dimensions of 5.30mm x 3.00mm and a maximum seated height of 0.60mm facilitate integration into various luminaire designs. This component is supplied in Tape & Reel packaging.
Additional Information
Series: DURIS® E 5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads |
| Color | White, Neutral |
| Size / Dimension | 0.209"" L x 0.118"" W (5.30mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.87V |
| Current - Test | 65mA |
| Viewing Angle | 120° |
| Current - Max | 180mA |
| Supplier Device Package | 4-SMD |
| Lumens/Watt @ Current - Test | 188 lm/W |
| Height - Seated (Max) | 0.024"" (0.60mm) |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 35lm (32lm ~ 38lm) |
| Flux @ 85°C, Current - Test | - |
