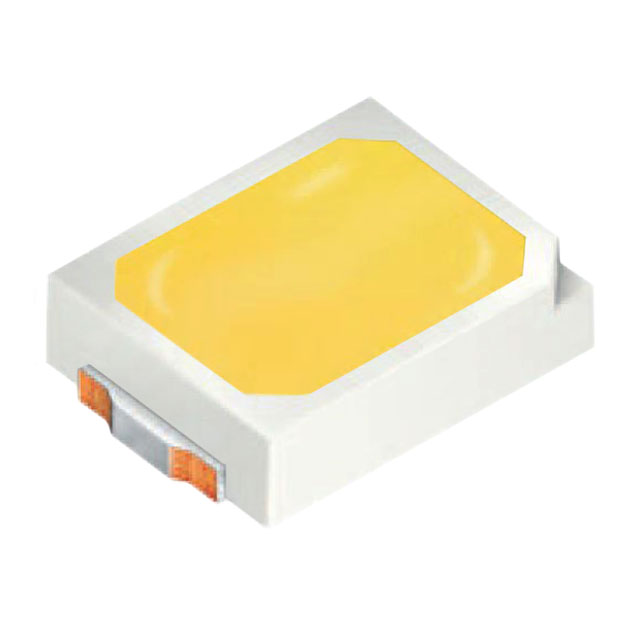

GW JBLMS2.EM-GRGT-XX58-1-65-R18
LED DURIS E2 WARM WHT 2700K 2SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. GW-JBLMS2-EM-GRGT-XX58-1-65-R18 is a DURIS® E 2 series LED designed for warm white illumination at 2700K. This surface mount component, housed in an 0806 (2016 Metric) package, offers a typical forward voltage of 3.1V and operates efficiently at 65mA test current, producing 24 lumens with a luminous efficacy of 119 lm/W. Its wide 120° viewing angle and a CRI of 80 make it suitable for general lighting applications. The LED's compact dimensions of 2.00mm x 1.60mm and a maximum seated height of 0.55mm facilitate integration into space-constrained designs. This component is supplied on tape and reel for automated assembly.
Additional Information
Series: DURIS® E 2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0806 (2016 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.079"" L x 0.063"" W (2.00mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Current - Test | 65mA |
| Viewing Angle | 120° |
| Current - Max | 100mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 119 lm/W |
| Height - Seated (Max) | 0.022"" (0.55mm) |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 24lm (21lm ~ 26lm) |
| Flux @ 85°C, Current - Test | - |
