GW DASPA1.EC-GTHP-5R8T-1
LED DURIS P5 WARM WHT 3000K 2SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

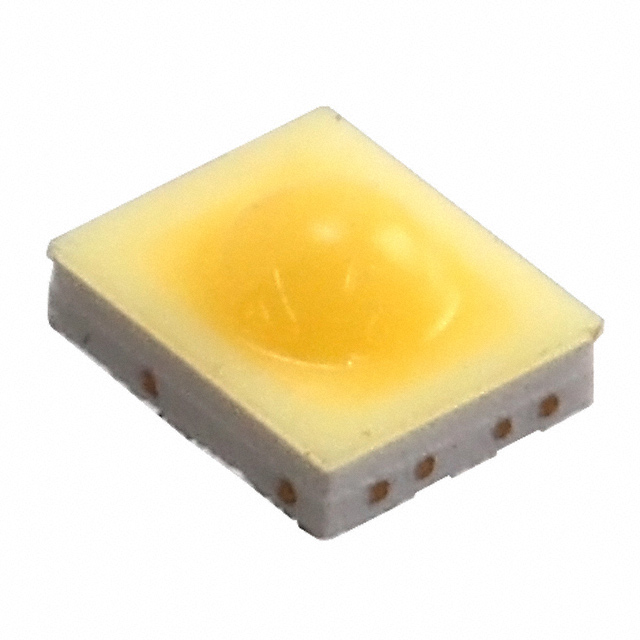

The ams-OSRAM USA INC. DURIS® P 5 series GW-DASPA1-EC-GTHP-5R8T-1 is a surface-mount, warm white LED designed for general illumination applications. This component features a typical forward voltage of 3V and a maximum forward current of 250mA, with a test current of 100mA producing 27 lumens and 90 lm/W efficacy. The LED offers a 3000K correlated color temperature (CCT) and a Color Rendering Index (CRI) of 80, providing a warm white light suitable for residential, commercial, and architectural lighting. Its 130° viewing angle ensures broad light distribution. The component is housed in a compact 1010 (2525 Metric) SMD package, measuring 0.102" L x 0.087" W (2.60mm x 2.20mm) with a seated height of 0.052" (1.31mm). It is supplied on Tape & Reel (TR) for automated assembly processes.
Additional Information
Series: DURIS® P 5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1010 (2525 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.102"" L x 0.087"" W (2.60mm x 2.20mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3V |
| Current - Test | 100mA |
| Viewing Angle | 130° |
| Current - Max | 250mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 90 lm/W |
| Height - Seated (Max) | 0.052"" (1.31mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 27lm (24lm ~ 30lm) |
| Flux @ 85°C, Current - Test | - |
