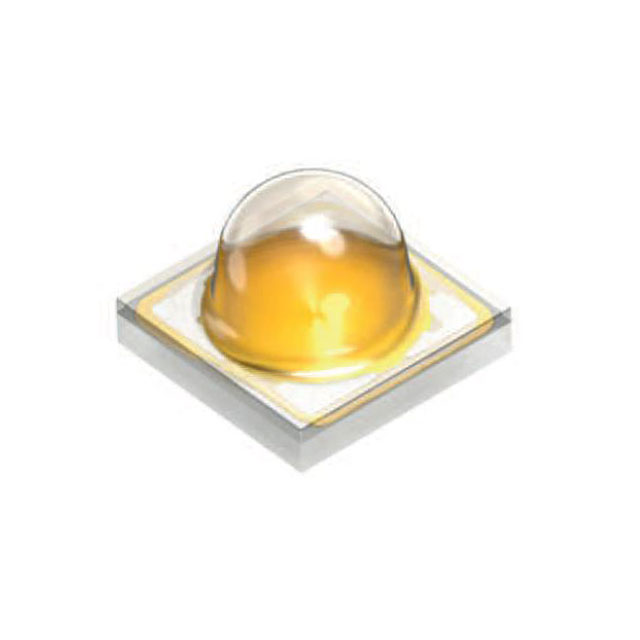

GW CS8PM1.EM-KTLP-XX58-1
LED OSLON WARM WHITE 2700KManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. OSLON® SSL 80 series GW-CS8PM1-EM-KTLP-XX58-1 is a high-reliability, warm white LED designed for demanding illumination applications. This component features a correlated color temperature (CCT) of 2700K with a Color Rendering Index (CRI) of 80, delivering a natural and inviting light quality. Engineered for surface mounting, it utilizes a 2-SMD, No Lead package measuring 3.00mm x 3.00mm with a seated height of 2.13mm. Operating at a typical forward voltage of 2.85V, this LED achieves a luminous efficacy of 109 lumens per watt at its test current of 350mA, producing 109 lumens. The viewing angle is specified at 80°. The device is supplied on tape and reel. Applications for this component include automotive interior lighting, general lighting, and architectural illumination. The maximum continuous current rating is 1.3A.
Additional Information
Series: OSLON® SSL 80RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | White, Warm |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.85V |
| Current - Test | 350mA |
| Viewing Angle | 80° |
| Current - Max | 1.3A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 109 lm/W |
| Height - Seated (Max) | 0.084"" (2.13mm) |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 109lm (97lm ~ 121lm) |
