LY Y876-R1S2-26
LED YELLOW CLEAR SMD R/AManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

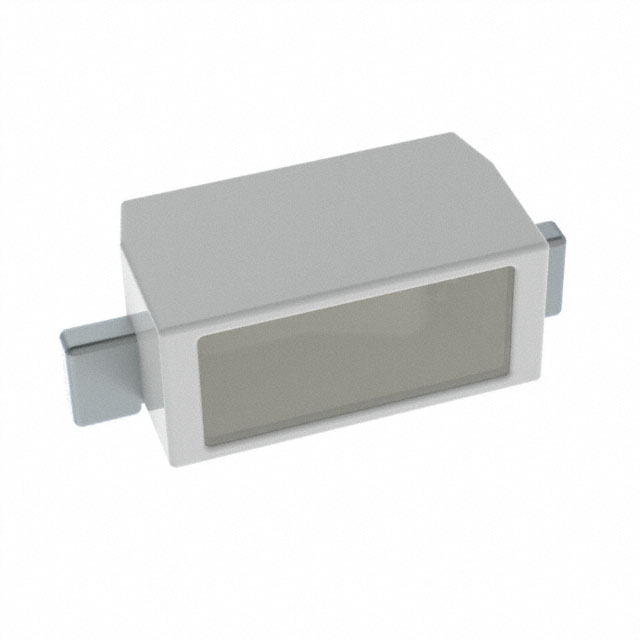

ams-OSRAM USA INC. Micro SIDELED® 3010 LY-Y876-R1S2-26 is a yellow surface-mount indicator LED with a dominant wavelength of 587nm and a peak wavelength of 591nm. This discrete component features a clear, colorless lens with a flat top, measuring 1.70mm x 0.70mm, providing a 120° viewing angle. Rated at 2V forward voltage and 20mA test current, it achieves a luminous intensity of 196mcd. The LED is housed in a 2-SMD, flat leads package for right-angle mounting, with overall dimensions of 2.20mm L x 1.20mm W x 1.20mm H. It is supplied on tape and reel. This component is suitable for applications requiring precise visual indication in automotive and industrial sectors.
Additional Information
Series: Micro SIDELED® 3010RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Color | Yellow |
| Size / Dimension | 2.20mm L x 1.20mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 196mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.20mm |
| Wavelength - Peak | 591nm |
| Wavelength - Dominant | 587nm |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.70mm x 0.70mm |
Request a Quote
Clients Also Buy

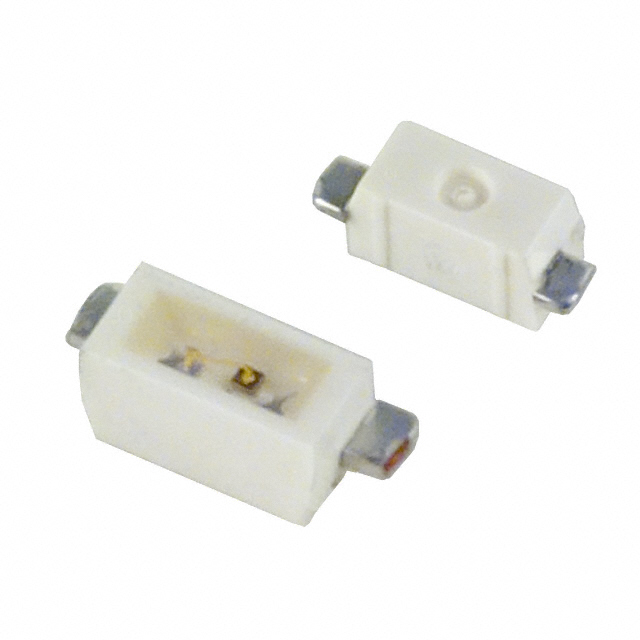

LA Y876-Q2S1-1-Z
