LY E63F-DBEB-35-1-50-R33-Z
LED YELLOW CLEAR 4PLCC SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

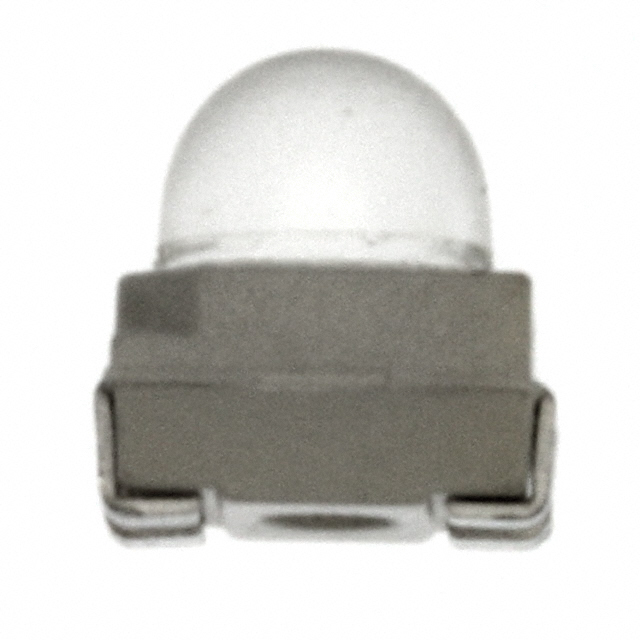

ams-OSRAM USA INC. Power TOPLED® with Lens LY-E63F-DBEB-35-1-50-R33-Z is a yellow, clear lens, surface-mount LED. This 4-PLCC packaged component emits light at a dominant wavelength of 590nm with a typical forward voltage of 2.15V and a test current of 50mA, producing 6900mcd. The lens features a round, domed top with a 2.60mm diameter and a 30° viewing angle. Measuring 3.20mm L x 2.80mm W with a maximum height of 3.80mm, this LED is supplied on tape and reel. It finds application in industrial automation, automotive lighting, and general electronic indication.
Additional Information
Series: Power TOPLED® with LensRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Yellow |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 6900mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.15V |
| Lens Color | Colorless |
| Current - Test | 50mA |
| Viewing Angle | 30° |
| Height (Max) | 3.80mm |
| Wavelength - Peak | 597nm |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 2.60mm Dia |
