LY A676-R1R2-26-0-20-R33-Z
LED YELLOW CLEAR SMD R/AManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

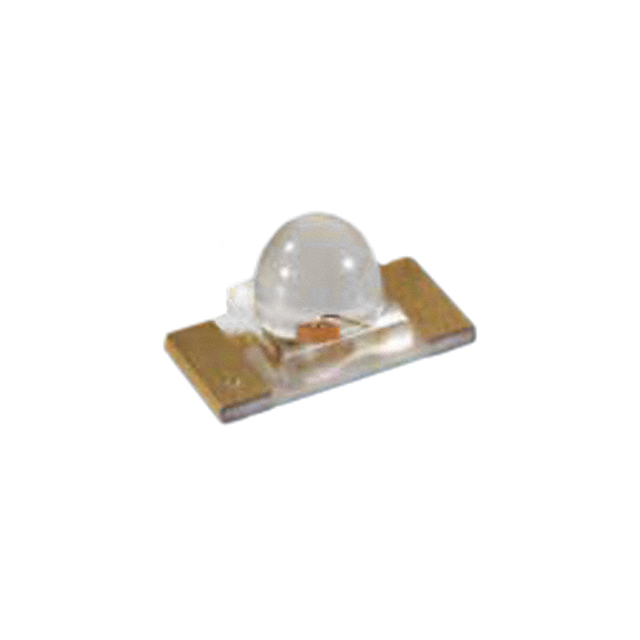

The ams-OSRAM USA INC. CHIPLED series LY-A676-R1R2-26-0-20-R33-Z is a yellow, clear, surface-mount LED designed for indication. This discrete component features a dominant wavelength of 588nm and a peak wavelength of 591nm, emitting a luminous intensity of 146mcd at a forward current of 20mA. The LED operates with a typical forward voltage of 2V and is housed in a 2-SMD, Boomerang package, suitable for right-angle mounting. Its dimensions are 4.00mm L x 3.60mm W with a maximum height of 4.20mm. The clear, colorless lens has a round, domed top with a 120° viewing angle. This component is commonly utilized in industrial automation, consumer electronics, and automotive applications for status indication. It is supplied in Tape & Reel packaging.
Additional Information
Series: CHIPLEDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Boomerang |
| Color | Yellow |
| Size / Dimension | 4.00mm L x 3.60mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 146mcd |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 4.20mm |
| Wavelength - Peak | 591nm |
| Wavelength - Dominant | 588nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 2.40mm Dia |
