LW Y1SG-AEBE-EKFM-1-Z
LED COOL WHITE DIFFUSED SMD R/AManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

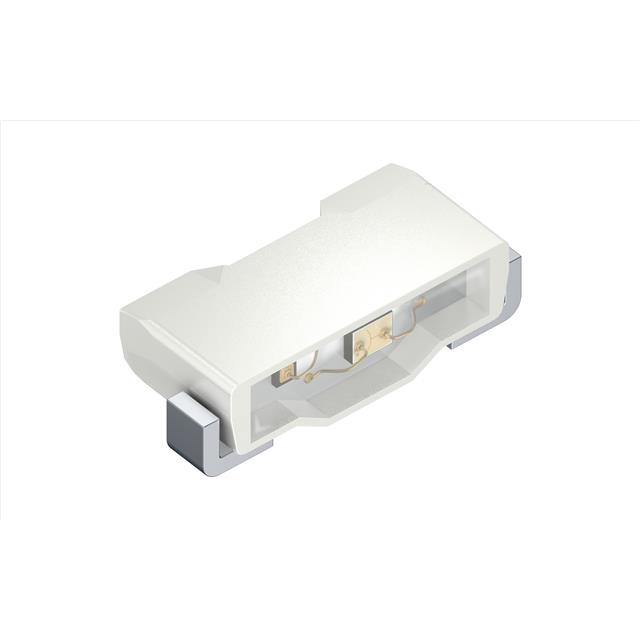

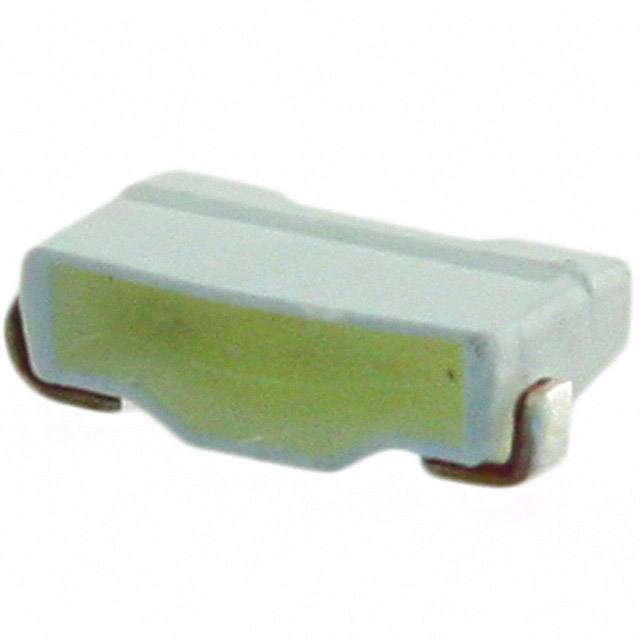

ams-OSRAM USA INC. Micro SIDELED® 2808 LW-Y1SG-AEBE-EKFM-1-Z is a cool white diffused SMD LED designed for indication applications. This discrete component operates at a typical forward voltage of 3.3V and features a 120° viewing angle. It delivers 1300 mcd luminous intensity at a standard test current of 20mA, with a dominant wavelength of 8200K. The LED is housed in a 2-SMD, No Lead package with a right-angle surface mount configuration, measuring 2.50mm L x 0.80mm W and a maximum height of 0.90mm. The diffused lens is yellow in color, with dimensions of 1.80mm x 0.60mm and a flat-top rectangular style. This component is commonly found in automotive and industrial lighting systems. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: Micro SIDELED® 2808RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | White, Cool |
| Size / Dimension | 2.50mm L x 0.80mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 1300mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 0.90mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 8200K |
| Supplier Device Package | SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.80mm x 0.60mm |
