LW TVSG.BB-BXBZ-HB-Z486-20-R18-Z-APS
LED WHITE DIFFUSED 2PLCC SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

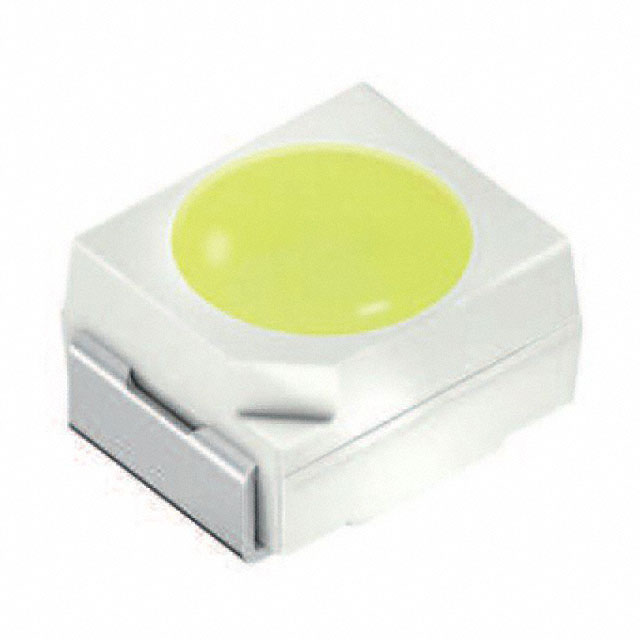

ams-OSRAM TOPLED® series white diffused LED, part number LW-TVSG-BB-BXBZ-HB-Z486-20-R18-Z-APS. This 2-PLCC surface-mount device is designed for indication applications, featuring a typical forward voltage of 3.05V and a forward current of 20mA. It delivers 2300mcd luminous intensity with a wide 120° viewing angle. The LED has a diffused lens with a flat top, measuring 2.40mm in diameter, and a yellow lens color. The component dimensions are 3.20mm L x 2.80mm W with a maximum height of 2.13mm. Supplied in Tape & Reel packaging, this component is suitable for use in industrial and consumer electronics.
Additional Information
Series: TOPLED®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | White |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2300mcd |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 3.05V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.13mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
