LW T773-Q2R2-5K6L-Z
LED TOPLED 5600K WHITE DIFF SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

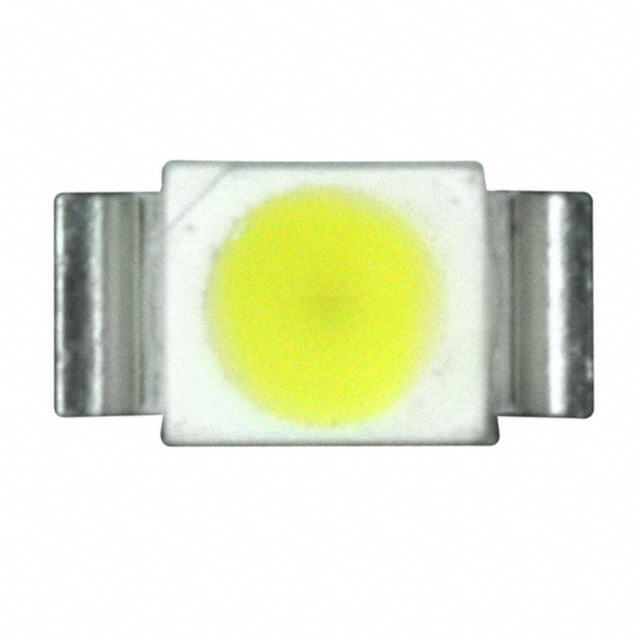

ams-OSRAM TOPLED® - Reverse Gullwing LW-T773-Q2R2-5K6L-Z is a discrete white LED with a cool 5600K color temperature. This surface-mount component, housed in a 2-SMD, Z-Bend package, features a round lens with a flat top and a 120° viewing angle. It operates with a typical forward voltage of 3.1V and has a millicandela rating of 135mcd at a test current of 10mA. The dimensions are 3.20mm L x 2.80mm W with a maximum height of 2.10mm. This component is suitable for applications in industrial automation, medical equipment, and general illumination where reliable visual indication is required. It is supplied in Tape & Reel packaging.
Additional Information
Series: TOPLED® - Reverse GullwingRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | White, Cool |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 135mcd |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 5600K |
| Supplier Device Package | SMD |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
