LW T773-Q2R1-5K8L-0-10-R18-Z
LED TOPLED REV GULLWING SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
ams-OSRAM USA INC. TOPLED® - Reverse Gullwing LW-T773-Q2R1-5K8L-0-10-R18-Z is a surface-mount, cool white LED with a CCT of 5600K. This discrete LED features a 2-SMD, Z-Bend package with dimensions of 3.20mm L x 2.80mm W and a maximum height of 2.10mm. It operates with a typical forward voltage of 3.1V and a test current of 10mA, producing a millicandela rating of 115mcd. The diffused yellow lens has a round with flat top style and a diameter of 2.40mm, providing a wide viewing angle of 120°. This component is supplied in Tape & Reel (TR) packaging and is suitable for applications in industrial automation and consumer electronics requiring clear visual indication.
Additional Information
Series: TOPLED® - Reverse GullwingRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | White, Cool |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 115mcd |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Lens Color | Yellow |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 5600K |
| Supplier Device Package | SMD |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
Request a Quote
Clients Also Buy

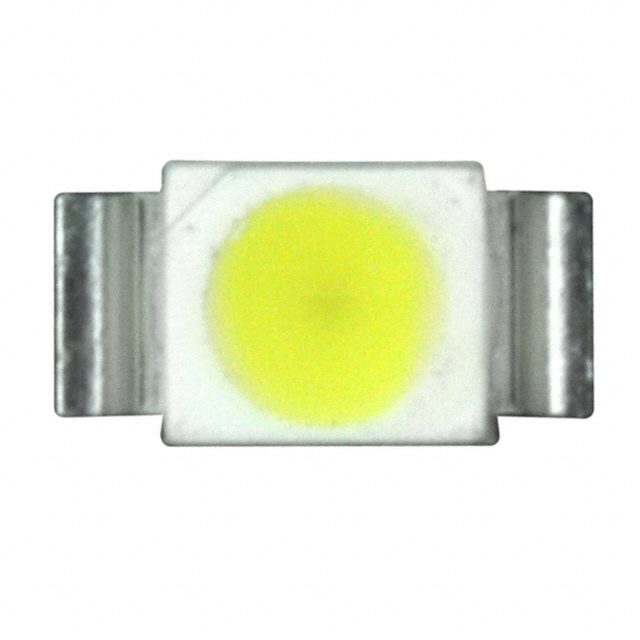

LW T773-Q2R2-5K8L-Z
LED COOL WHITE DIFF SMD BOT ENT

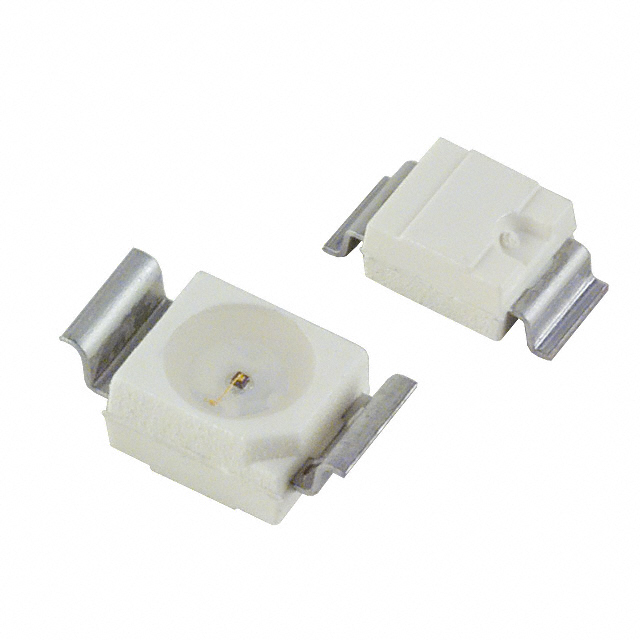

LA T776-R1S2-1
