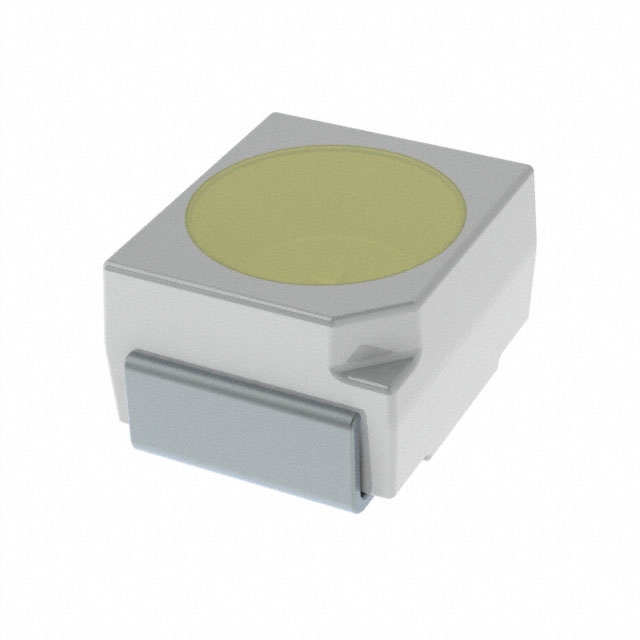

LW T673-P1S1-FKPL-0-10-R18-Z
LED WHITE DIFFUSED 2PLCC SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
The ams-OSRAM USA INC. TOPLED® LW-T673-P1S1-FKPL-0-10-R18-Z is a white diffused LED designed for surface mounting in a 2-PLCC package. This discrete LED component offers a typical forward voltage of 3.1V and achieves a luminous intensity of 135mcd at a test current of 10mA. Featuring a diffused lens with a 120° viewing angle, it provides a broad illumination pattern. The LED measures 3.20mm in length and 2.80mm in width, with a maximum height of 2.10mm. Packaging is provided on a tape and reel. This component is commonly utilized in industrial automation, consumer electronics, and medical device applications for clear visual indication.
Additional Information
Series: TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | White |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 135mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Lens Color | Yellow |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
