LW P473-R1R2-FKPL-1-10-R18-Z
LED WHITE DIFFUSED 2SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

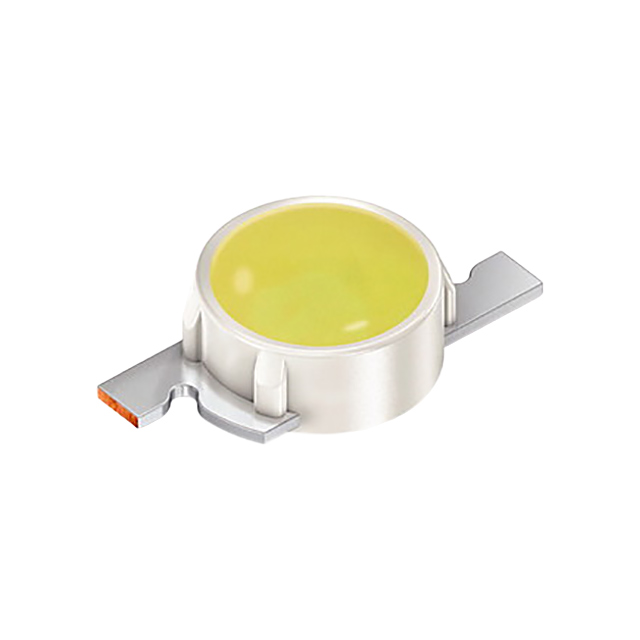

The ams-OSRAM USA INC. PointLED® LW-P473-R1R2-FKPL-1-10-R18-Z is a white diffused LED designed for surface mount applications. This component features a 2-SMD, Flat Leads package with a diffused lens for wide-angle illumination. Operating at a typical forward voltage of 3.1V, it delivers 146mcd luminous intensity at a 10mA test current, with a broad viewing angle of 120°. The overall dimensions contribute to a low profile, with a maximum height of 0.88mm. This device is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication and general illumination. It is supplied in Tape & Reel packaging.
Additional Information
Series: PointLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Color | White |
| Size / Dimension | - |
| Mounting Type | Surface Mount |
| Millicandela Rating | 146mcd |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Lens Color | Yellow |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 0.88mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 1.60mm Dia |
