LTRBR8SF-8A7B-0117-0-0-R33-ZP-XX
LED RGB DIFFUSED 6SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
ams-OSRAM USA INC. LTRBR8SF-8A7B-0117-0-0-R33-ZP-XX is a Multi CHIPLED component featuring diffused Red, Green, and Blue light emission within a 6-SMD, No Lead package. This discrete LED indication component is designed for surface mounting with a compact footprint of 3.00mm x 3.00mm and a maximum height of 0.95mm. Each color channel offers distinct dominant wavelengths: Red at 625nm, Green at 528nm, and Blue at 463nm. At a typical forward current of 20mA per channel, the component provides luminous intensity ratings of 720mcd for Red, 1100mcd for Green, and 360mcd for Blue. The forward voltage requirements are 2.1V for Red, and 3.3V for both Green and Blue channels. The diffused lens provides a wide viewing angle of 170° for Red and 130° for Green and Blue. This component is suitable for applications in automotive, industrial, and consumer electronics where reliable and versatile RGB illumination is required.
Additional Information
Series: Multi CHIPLEDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-SMD, No Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.00mm L x 3.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 720mcd Red, 1100mcd Green, 360mcd Blue |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.3V Green, 3.3V Blue |
| Lens Color | White |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 170°, 130° |
| Height (Max) | 0.95mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 625nm Red, 528nm Green, 463nm Blue |
| Supplier Device Package | 6-SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.00mm x 2.20mm |
Request a Quote
Clients Also Buy

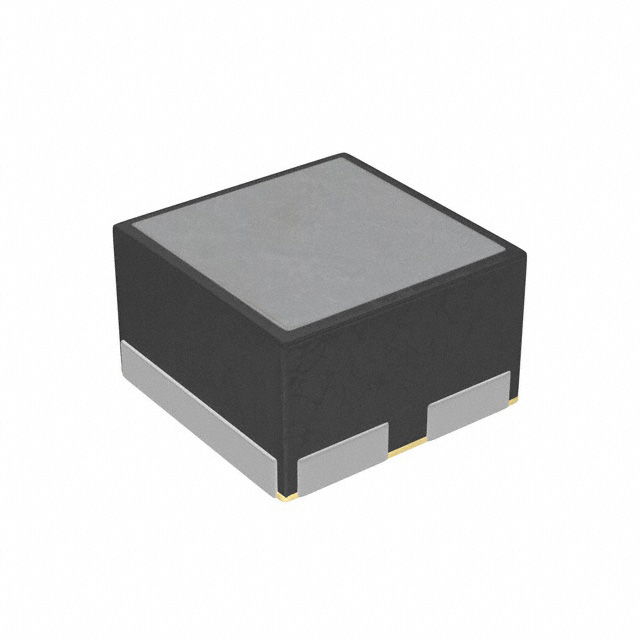

LRTB R98G-R7T5-1+S7U-26+P7R-26
LED RGB DIFFUSED CHIP SMD
LRTBR48G-P7Q7-1+R5S5-35+NP-69
LED RGB CLEAR 4SMD

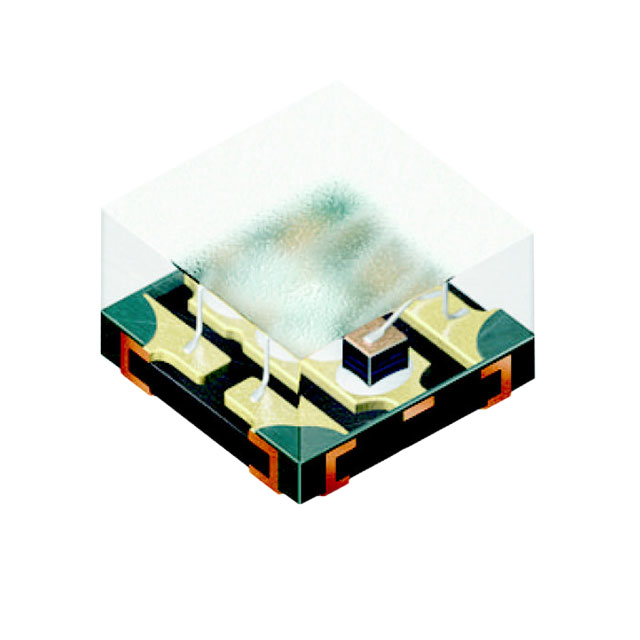

LRTBR48G-P9Q7-1+R7S5-2+N5P-6-R33-ZC
