LT T64G-DAFA-29-0-20-R33-Z
LED GREEN CLEAR 2PLCC SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

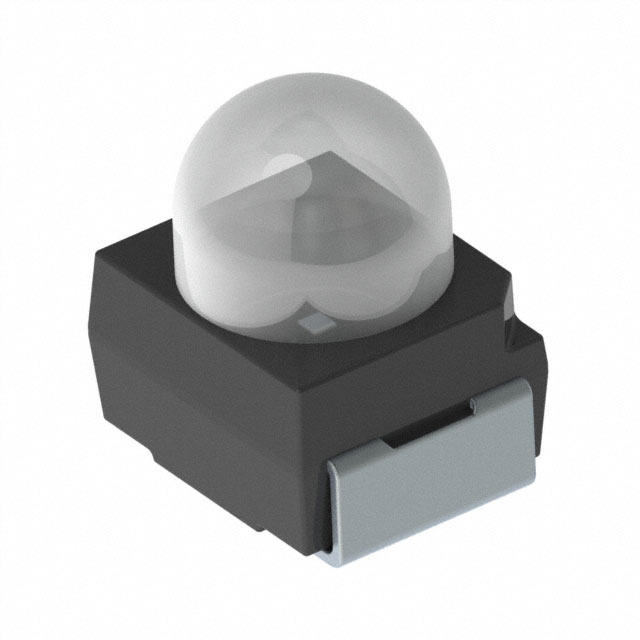

The ams-OSRAM USA INC. TOPLED® Black series LT-T64G-DAFA-29-0-20-R33-Z is a green, clear lens surface-mount LED. This discrete indicator features a 528nm dominant wavelength and 523nm peak wavelength. It operates at a typical forward voltage of 3.2V with a test current of 20mA, producing a luminous intensity of 7230mcd. The component is housed in a 1212 (3030 Metric) package, specifically a 2-PLCC, measuring 3.20mm L x 2.80mm W with a maximum height of 3.80mm. Its round, domed top lens offers a 30° viewing angle. This component is supplied on a Tape & Reel (TR) for automated assembly and is suitable for applications in automotive, industrial automation, and general lighting.
Additional Information
Series: TOPLED® BlackRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 7230mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 3.80mm |
| Wavelength - Peak | 523nm |
| Wavelength - Dominant | 528nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 2.53mm Dia |
