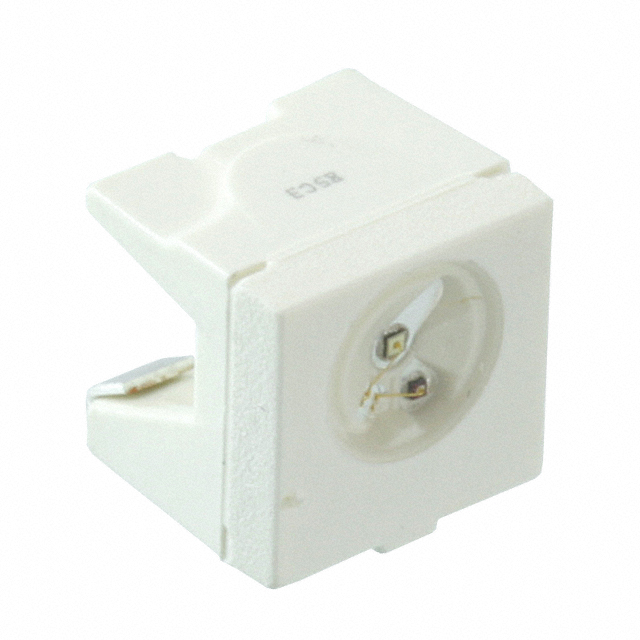

LT A6SG-V1AB-36-0-20-R33-Z
LED GREEN CLEAR 2SMD R/AManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
The ams-OSRAM USA INC. SIDELED® LT-A6SG-V1AB-36-0-20-R33-Z is a green LED designed for indication applications. This discrete component emits light at a dominant wavelength of 528nm with a peak wavelength of 523nm. It features a clear, colorless lens with a round, flat-top design, providing a wide 120° viewing angle. The LED is rated for a forward voltage of 3.2V and operates with a test current of 20mA, achieving a millicandela rating of 1255mcd. Its surface mount configuration utilizes a 2-SMD, J-Lead package, with dimensions of 3.60mm L x 4.00mm W and a maximum height of 4.20mm. This component is supplied in Tape & Reel packaging and is suitable for use in automotive, industrial, and consumer electronics sectors requiring robust visual feedback.
Additional Information
Series: SIDELED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Green |
| Size / Dimension | 3.60mm L x 4.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 1255mcd |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 4.20mm |
| Wavelength - Peak | 523nm |
| Wavelength - Dominant | 528nm |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
