LSY T67B-S1T2-1-0+T1U2-26-0-30-R18-Z

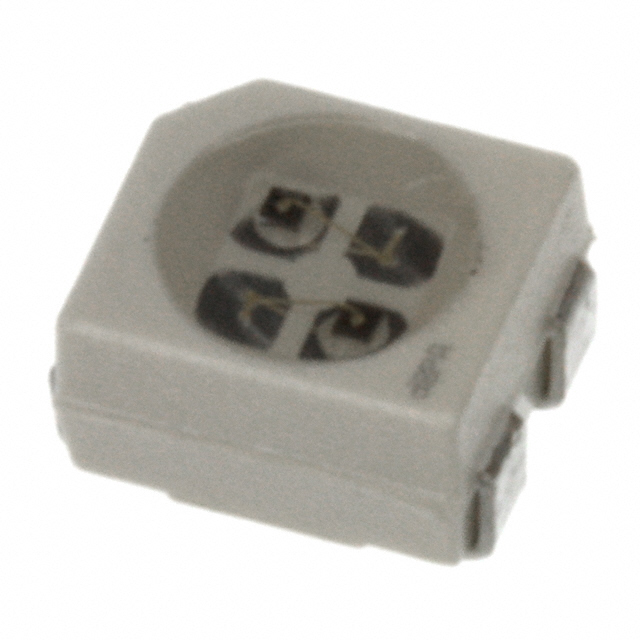

LED RED/YELLOW CLEAR 4PLCC SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
ams-OSRAM USA INC. Multi TOPLED® series LSY-T67B-S1T2-1-0-T1U2-26-0-30-R18-Z is a discrete LED component featuring independent red and yellow emitters. This 4-PLCC package component is designed for surface mounting and measures 3.20mm L x 2.80mm W with a maximum height of 2.10mm. The clear, colorless lens has a round with flat top style, measuring 2.40mm in diameter. At a test current of 30mA, the red emitter provides a typical luminous intensity of 315mcd with a dominant wavelength of 633nm and a peak wavelength of 645nm. The yellow emitter, also at 30mA, offers a typical luminous intensity of 495mcd with a dominant wavelength of 587nm and a peak wavelength of 594nm. Both emitters exhibit a wide 120° viewing angle. The forward voltage for both red and yellow is typically 2.1V. This component is commonly utilized in industrial automation, automotive lighting, and consumer electronics for indication purposes. It is supplied in Tape & Reel packaging.
Additional Information
Series: Multi TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red, Yellow |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 315mcd Red, 495mcd Yellow |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 2.1V Yellow |
| Lens Color | Colorless |
| Current - Test | 30mA Red, 30mA Yellow |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 645nm Red, 594nm Yellow |
| Wavelength - Dominant | 633nm Red, 587nm Yellow |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
