LSP T670-HK-1-0+GJ-1-0-10-R18-Z
LED TOPLED 628/560 RED/GRN 4PLCCManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

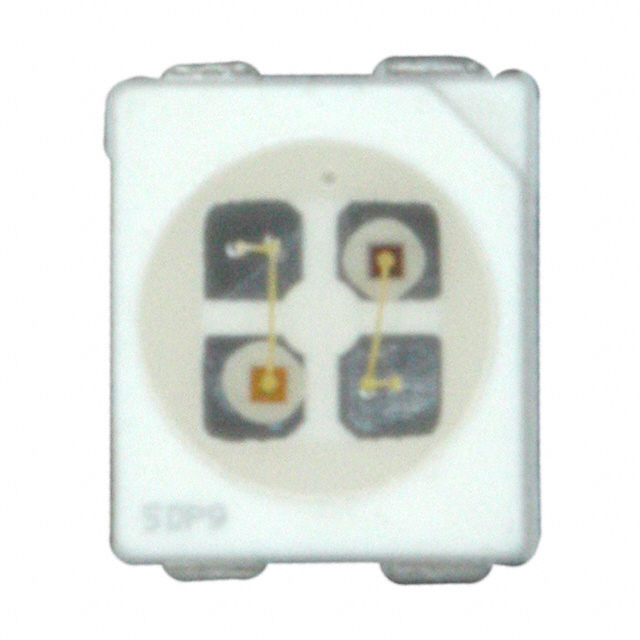

The ams-OSRAM USA INC. Multi TOPLED® LSP-T670-HK-1-0-GJ-1-0-10-R18-Z is a discrete, surface-mount LED indicator featuring dual colors, Green and Red. This 4-PLCC packaged component offers dominant wavelengths of 560nm (Green) and 628nm (Red), with peak wavelengths at 557nm and 635nm respectively. Tested at 10mA, it provides a luminous intensity of 4.5mcd for Green and 7mcd for Red. The forward voltage for both colors is typically 2.0V. Designed with a 120° viewing angle, the LED measures 3.20mm L x 2.80mm W with a maximum height of 2.10mm and a lens diameter of 2.40mm. This component is commonly utilized in industrial automation, consumer electronics, and automotive applications for status indication. It is supplied on tape and reel for efficient high-volume assembly.
Additional Information
Series: Multi TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Green, Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 4.5mcd Green, 7mcd Red |
| Voltage - Forward (Vf) (Typ) | 2.0V Green, 2.0V Red |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 557nm, 635nm |
| Wavelength - Dominant | 560nm, 628nm |
| Supplier Device Package | 4-PLCC |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
