LSG T677-JL-1-0+JL-1-0-10-R18-Z
LED GREEN/RED CLEAR SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

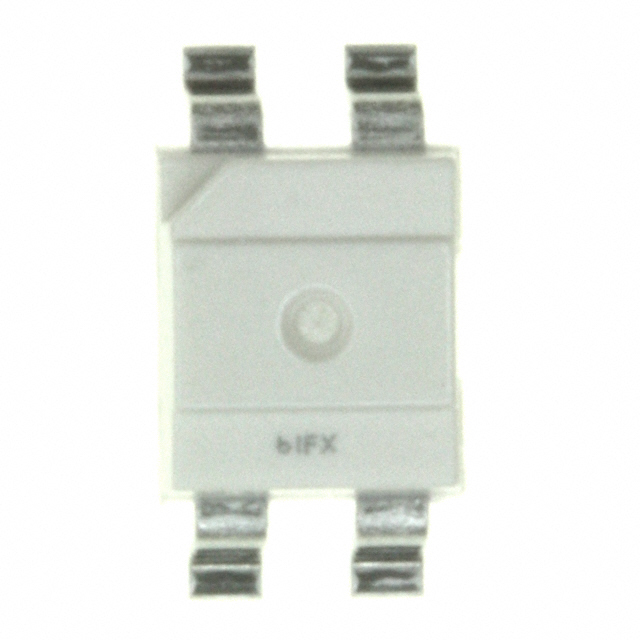

ams-OSRAM USA INC. LSG-T677-JL-1-0-JL-1-0-10-R18-Z is a discrete LED component from the Multi TOPLED® - Reverse Gullwing series. This 4-PLCC surface mount device features independent green and red emitters, each with a typical forward voltage of 2V and a test current of 10mA. The dominant wavelengths are 570nm for green and 628nm for red, with peak wavelengths at 572nm and 635nm respectively. Each emitter provides a luminous intensity of 11.25mcd. The LED has a clear, colorless lens with a round, flat-top style, measuring 2.40mm in diameter. The overall dimensions of the component are 3.20mm L x 2.80mm W, with a maximum height of 2.10mm and a viewing angle of 120°. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication. The LSG-T677-JL-1-0-JL-1-0-10-R18-Z is supplied in Tape & Reel packaging.
Additional Information
Series: Multi TOPLED® - Reverse GullwingRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Green, Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 11.25mcd Green, 11.25mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red |
| Lens Color | Colorless |
| Current - Test | 10mA Green, 10mA Red |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 572nm Green, 635nm Red |
| Wavelength - Dominant | 570nm Green, 628nm Red |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
