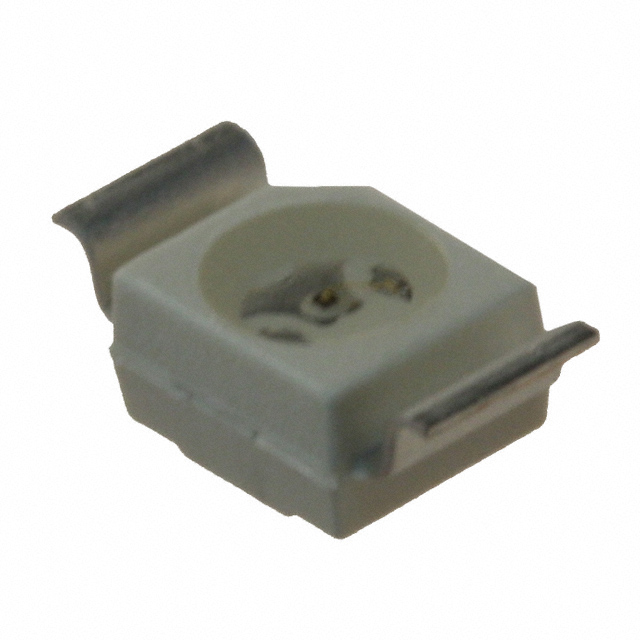

LS T77K-K1L2-1-Z
LED RED CLEAR SMD BOTTOM ENTRYManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
The ams-OSRAM TOPLED® - Reverse Gullwing LS-T77K-K1L2-1-Z is a red, clear, surface-mount LED with a 630nm dominant wavelength. This discrete component features a 1.8V forward voltage and a 2mA test current, delivering a typical luminous intensity of 12.55mcd. The lens is round with a flat top, measuring 2.40mm in diameter and offering a wide 120° viewing angle. Its 2-SMD, Z-Bend package with bottom entry mounting is supplied on tape and reel. This component is suitable for various indication applications across industrial and automotive sectors. Its dimensions are 3.20mm L x 2.80mm W with a maximum height of 2.10mm.
Additional Information
Series: TOPLED® - Reverse GullwingRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 12.55mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Colorless |
| Current - Test | 2mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 643nm |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
