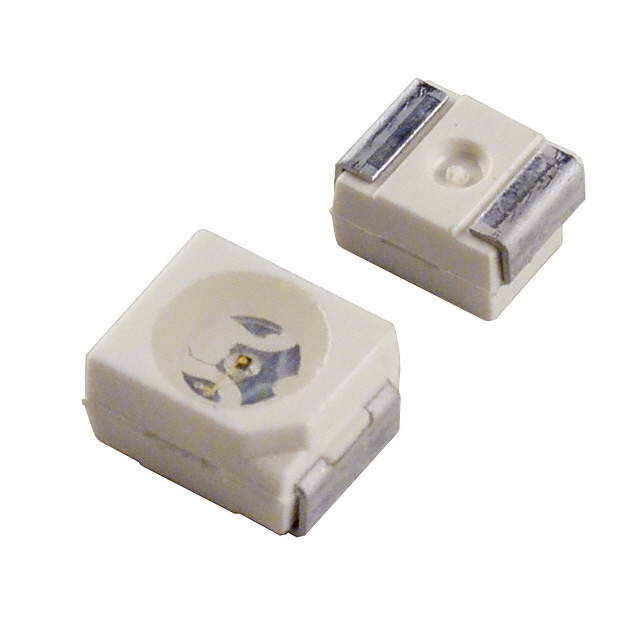

LS T67F-U2V1-1-1-20-R18-Z-MM
LED RED CLEAR 2PLCC SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
Red 633nm LED Indication - Discrete 2.05V 2-PLCC
Additional Information
Series: TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 730mcd |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 645nm |
| Wavelength - Dominant | 633nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
Request a Quote
Clients Also Buy

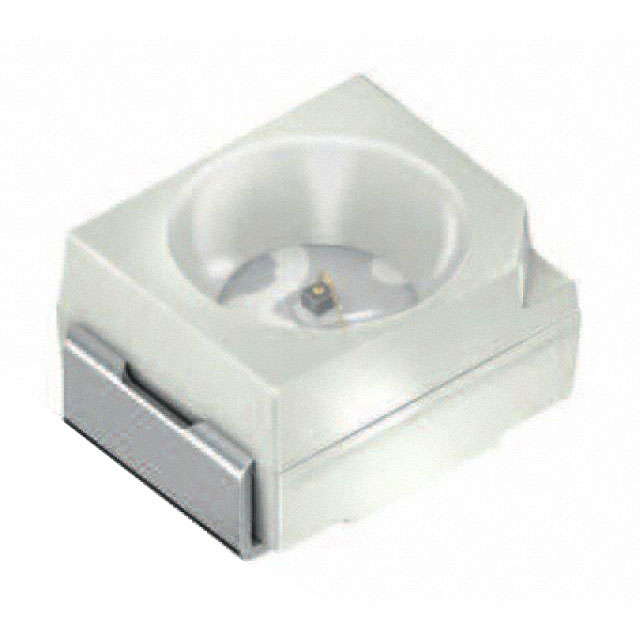

LS T67K-J1L2-1-Z
