LS 3386-Q1R2-1
LED RED DIFFUSED T-1 T/HManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
ams-OSRAM USA INC. LS-3386-Q1R2-1 is a red diffused T-1 through-hole LED with a dominant wavelength of 633nm and a peak wavelength of 645nm. This Radial series component features a 2V typical forward voltage and a 20mA test current, producing 125.5mcd luminous intensity. The diffused, red lens has a round, domed top measuring 3mm (T-1) and a maximum height of 6.10mm. Its 100° viewing angle makes it suitable for various indication applications across industrial, automotive, and consumer electronics sectors. This component is supplied in bulk packaging.
Additional Information
Series: RadialRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 125.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 100° |
| Height (Max) | 6.10mm |
| Wavelength - Peak | 645nm |
| Wavelength - Dominant | 633nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
Clients Also Buy
LA 3366-R1S2-1
LED AMBER DIFFUSED T-1 T/H

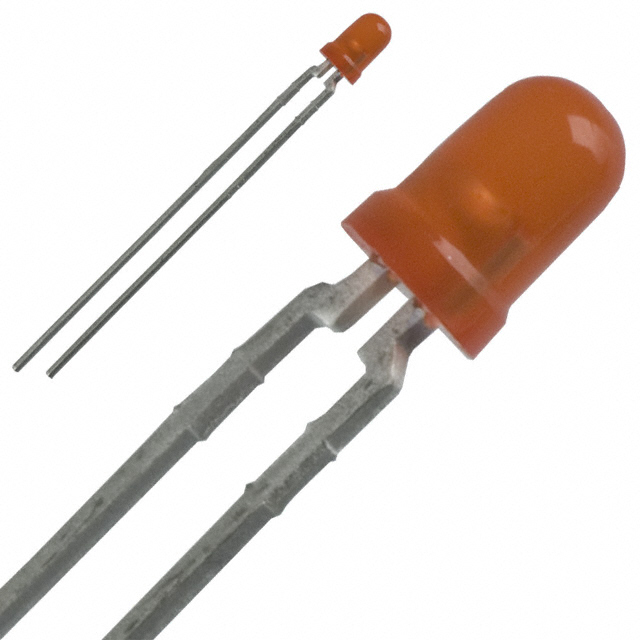

LA 3366-R1T2-1-0-20-BULK
