LS 336K-J2M2-1
LED RED DIFFUSED T-1 T/HManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

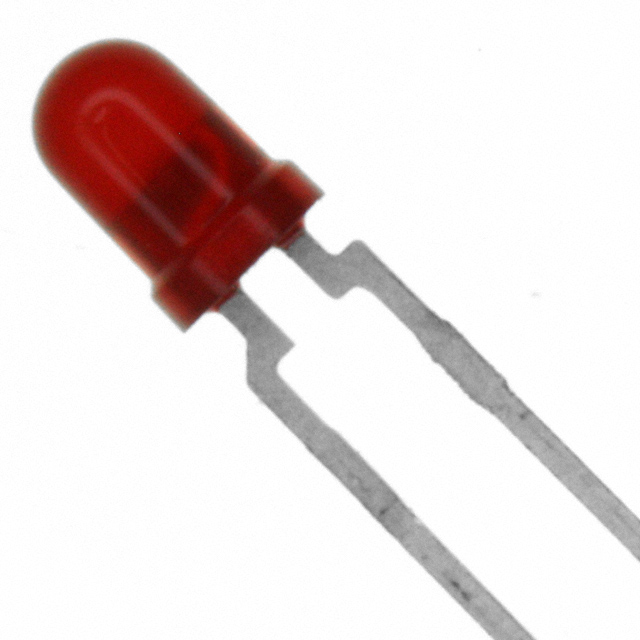

ams-OSRAM USA INC. LS-336K-J2M2-1 is a T-1 through-hole LED featuring a diffused red lens. This discrete component operates with a typical forward voltage of 1.8V and a test current of 2mA, producing a luminous intensity of 16.8mcd. The dominant wavelength is 630nm, with a peak wavelength of 643nm. The viewing angle is 60 degrees. This Radial series component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication. It is supplied in bulk packaging.
Additional Information
Series: RadialRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 16.8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Red |
| Current - Test | 2mA |
| Viewing Angle | 60° |
| Height (Max) | 6.10mm |
| Wavelength - Peak | 643nm |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
