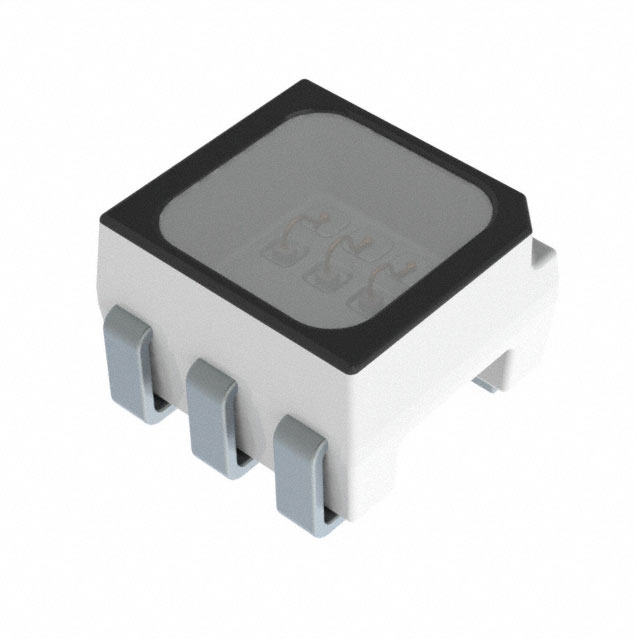

LRT GFTM-S7T7-1+V7AW-29-0-A-R33-ZB
LED GREEN/RED DIFFUSED 6PLCC SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
The ams-OSRAM USA INC. MULTILED® Black Surface series LRT-GFTM-S7T7-1-V7AW-29-0-A-R33-ZB is a dual-color SMT LED component. This 6-PLCC package device features separate Green (528nm dominant, 523nm peak) and Red (625nm dominant, 632nm peak) emitters. At a test current of 20mA for Green and 10mA for Red, the component delivers typical luminous intensity ratings of 1350mcd for Green and 392mcd for Red. The forward voltage is 3.2V for Green and 2.05V for Red. The diffused, rectangular lens measures 2.80mm x 2.50mm, contributing to a 120° viewing angle. This component is suitable for surface mounting and is supplied on tape and reel. It finds application in automotive, industrial automation, and general illumination sectors.
Additional Information
Series: MULTILED® Black SurfaceRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Green, Red |
| Size / Dimension | 3.30mm L x 3.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1350mcd Green, 392mcd Red |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 3.2V Green, 2.05V Red |
| Lens Color | - |
| Current - Test | 20mA Green, 10mA Red |
| Viewing Angle | 120° |
| Height (Max) | 2.00mm |
| Wavelength - Peak | 523nm Green, 632nm Red |
| Wavelength - Dominant | 528nm Green, 625nm Red |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.80mm x 2.50mm |
