LP P47F-P2S1-35-1-30-R18F-Z
LED CLEAR TOP MNT SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

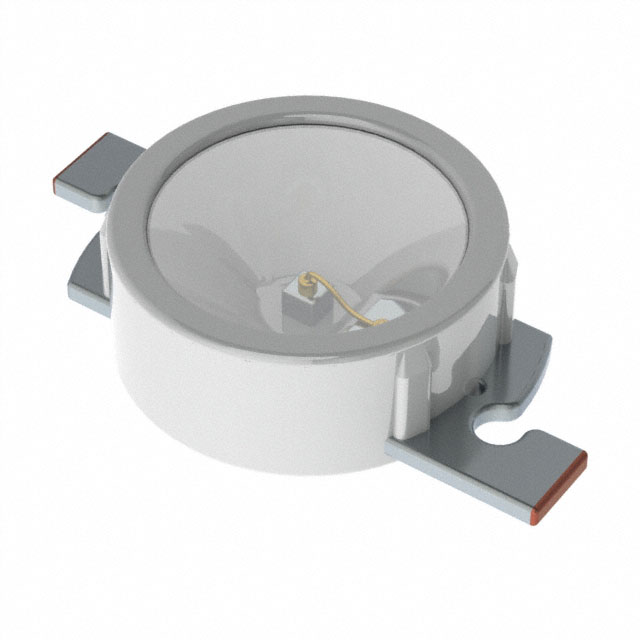

ams-OSRAM USA INC. PointLED® LP-P47F-P2S1-35-1-30-R18F-Z is a 560nm LED with a clear, flat-top lens, designed for surface mount applications. This discrete indicator features a 2-SMD package with flat leads, measuring 2.10mm in diameter with a maximum height of 0.88mm. Operating at a typical forward voltage of 2.3V, this component is specified for a test current of 30mA and exhibits a peak wavelength of 562nm. Its broad 120° viewing angle makes it suitable for various indication and signaling applications across industries such as automotive, industrial automation, and consumer electronics. The component is supplied in Tape & Reel packaging.
Additional Information
Series: PointLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Color | - |
| Size / Dimension | 2.10mm Dia |
| Mounting Type | Surface Mount |
| Millicandela Rating | - |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 2.3V |
| Lens Color | Colorless |
| Current - Test | 30mA |
| Viewing Angle | 120° |
| Height (Max) | 0.88mm |
| Wavelength - Peak | 562nm |
| Wavelength - Dominant | 560nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.11mm Dia |
