LOG T671-JL-1-0+KM-1-0-10-R18-Z
LED TOPLED 606/570NM OR/GN 4PLCCManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

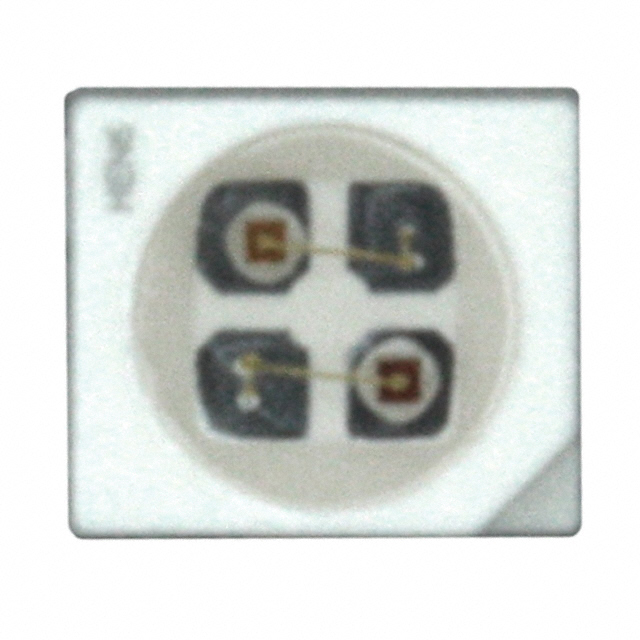

The ams-OSRAM TOPLED® LOG-T671-JL-1-0-KM-1-0-10-R18-Z is a dual-color discrete LED designed for surface mount applications. This component features distinct green (570nm dominant, 572nm peak) and orange (606nm dominant, 610nm peak) light emission, with typical forward voltages of 2.0V for both colors at 10mA test current. The LED delivers 17.6mcd for green and 11.3mcd for orange. Housed in a 4-PLCC package measuring 3.20mm L x 2.80mm W with a height of 2.10mm, it offers a wide 120° viewing angle. The lens is round with a flat top, with a diameter of 2.40mm. This component is commonly utilized in industrial control, automotive, and consumer electronics for status indication and visual feedback. It is supplied in Tape & Reel packaging.
Additional Information
Series: TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Green, Orange |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 17.6mcd Green, 11.3mcd Orange |
| Voltage - Forward (Vf) (Typ) | 2.0V Green, 2.0V Orange |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 572nm, 610nm |
| Wavelength - Dominant | 570nm, 606nm |
| Supplier Device Package | 4-PLCC |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
