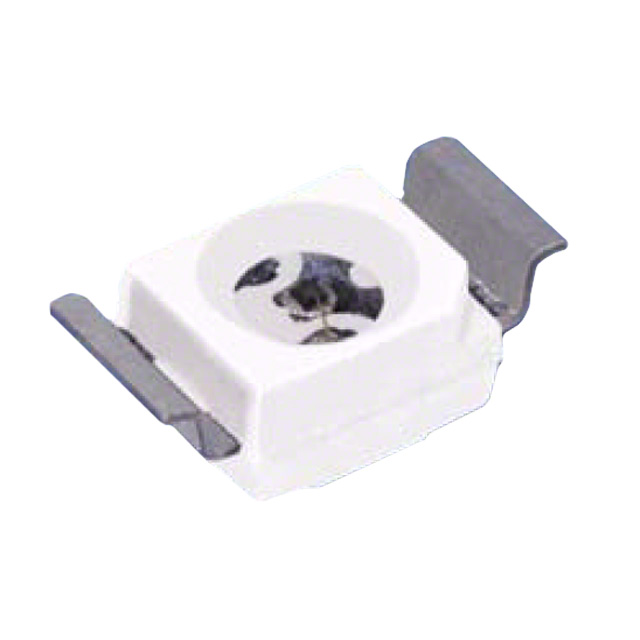

LO T77K-L1M2-24-Z
LED ORANGE CLEAR SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
ams-OSRAM USA INC. TOPLED® - Reverse Gullwing LO-T77K-L1M2-24-Z is an orange, clear lens, surface-mount LED designed for indication applications. This discrete component emits light with a dominant wavelength of 606nm and a peak wavelength of 610nm. It operates with a typical forward voltage of 1.8V and is rated for a test current of 2mA, producing a millicandela output of 19.6mcd. The LED features a 120° viewing angle and is housed in a 2-SMD, Z-Bend package with a 2.40mm diameter round lens with a flat top. Its dimensions are 3.20mm L x 2.80mm W, with a maximum height of 2.10mm. This component is supplied on tape and reel. Applications include automotive, industrial, and consumer electronics where reliable visual feedback is critical.
Additional Information
Series: TOPLED® - Reverse GullwingRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | Orange |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 19.6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Colorless |
| Current - Test | 2mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 610nm |
| Wavelength - Dominant | 606nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
