LO M67F-U2AB-24-1-20-R18-Z
LED ORANGE CLEAR SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

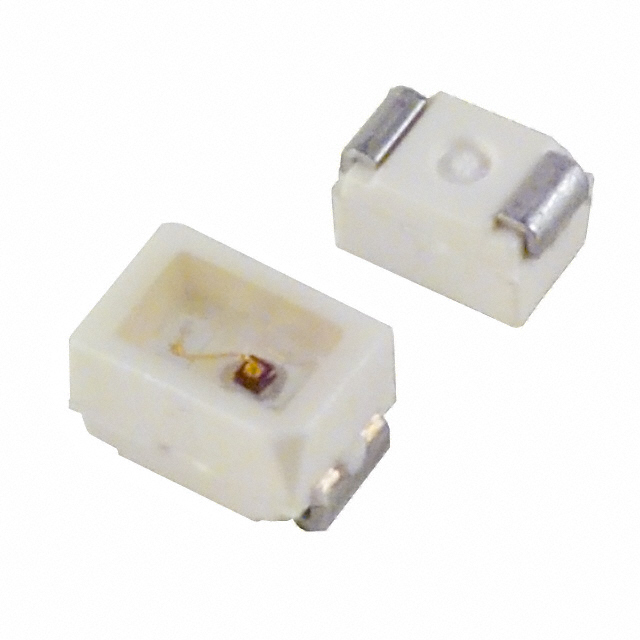

ams-OSRAM USA INC. Mini TOPLED® LO-M67F-U2AB-24-1-20-R18-Z is an orange, clear lens, surface-mount LED designed for indication applications. This discrete component operates with a typical forward voltage of 2.15V at a test current of 20mA, emitting light at a dominant wavelength of 606nm and a peak wavelength of 610nm. It offers a high luminous intensity of 1180mcd with a wide viewing angle of 120°. The 2-SMD, J-Lead package has dimensions of 2.00mm L x 1.40mm W, featuring a colorless, rectangular lens with a flat top. This component is supplied on tape and reel. Its specifications make it suitable for use in consumer electronics, industrial control systems, and automotive safety systems.
Additional Information
Series: Mini TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Orange |
| Size / Dimension | 2.00mm L x 1.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1180mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.15V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.40mm |
| Wavelength - Peak | 610nm |
| Wavelength - Dominant | 606nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 1.00mm |
