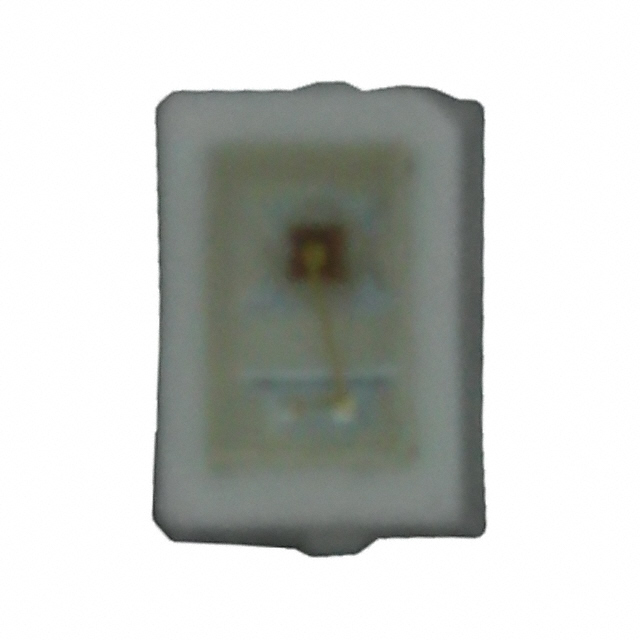

LO M670-J2L1-24-0-10-R18-Z
LED MINI TOPLED ORANGE 606NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
ams-OSRAM USA INC. Mini TOPLED® LO-M670-J2L1-24-0-10-R18-Z is a discrete surface-mount Light Emitting Diode designed for indication applications. This component features a dominant wavelength of 606nm and a peak wavelength of 610nm, producing a distinct orange light output. The LED is housed in a 2-SMD, J-Lead package, measuring 2.00mm in length and 1.40mm in width, with a maximum height of 1.40mm. The lens style is rectangular, with dimensions of 1.50mm x 1.00mm, and offers a wide viewing angle of 120°. Tested at 10mA, it achieves a millicandela rating of 9.8mcd. This component is supplied in Tape & Reel packaging and is commonly utilized in the automotive and industrial sectors for status indication.
Additional Information
Series: Mini TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Orange |
| Size / Dimension | 2.00mm L x 1.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 9.8mcd |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 1.40mm |
| Wavelength - Peak | 610nm |
| Wavelength - Dominant | 606nm |
| Supplier Device Package | SMD |
| Lens Style | Rectangle |
| Lens Size | 1.50mm x 1.00mm |
