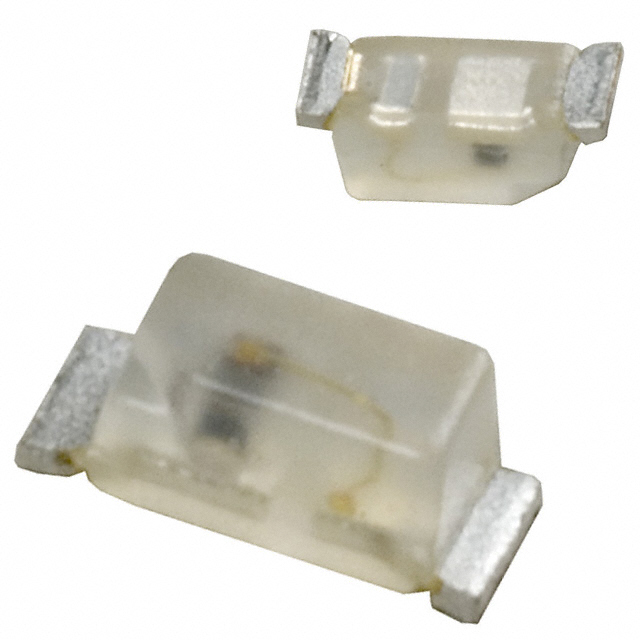

LO L89K-J2L1-24
LED ORANGE DIFFUSED SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
The ams-OSRAM USA INC. SMARTLED® 0603 series offers a discrete orange LED with a dominant wavelength of 606nm. This surface-mount component, identified by the part number LO-L89K-J2L1-24, is housed in a 0603 (1608 Metric) package. Featuring diffused optics for a wide 160° viewing angle, it operates with a typical forward voltage of 1.8V and a test current of 2mA, achieving a millicandela rating of 9.8mcd. Its compact dimensions of 1.70mm L x 0.80mm W and a maximum height of 0.65mm make it suitable for space-constrained applications. This component is commonly utilized for indication purposes across various industries including automotive, industrial, and consumer electronics. The LO-L89K-J2L1-24 is supplied in Tape & Reel packaging.
Additional Information
Series: SMARTLED® 0603RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Orange |
| Size / Dimension | 1.70mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 9.8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | White |
| Current - Test | 2mA |
| Viewing Angle | 160° |
| Height (Max) | 0.65mm |
| Wavelength - Peak | 610nm |
| Wavelength - Dominant | 606nm |
| Supplier Device Package | SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.30mm x 0.80mm |
