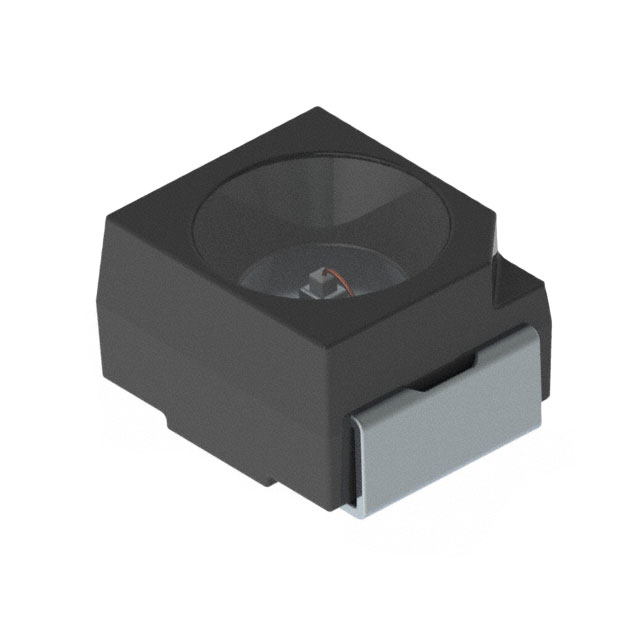

LH T6MF-GGHH-1-E3L3
LED RED CLEAR 2PLCC SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
ams-OSRAM USA INC. TOPLED® Black series LH-T6MF-GGHH-1-E3L3 is a discrete red LED designed for indication applications. This 2-PLCC surface mount component features a clear, round lens with a flat top, offering a wide 120° viewing angle. It operates with a typical forward voltage of 2.05V and a test current of 20mA, emitting light at a dominant wavelength of 645nm and a peak wavelength of 662nm. The compact dimensions of 3.20mm L x 2.80mm W and a maximum height of 2.10mm make it suitable for space-constrained designs. This component is supplied in Tape & Reel packaging. Applications include automotive, industrial, and consumer electronics for status indication.
Additional Information
Series: TOPLED® BlackRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 662nm |
| Wavelength - Dominant | 645nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | - |
