LH R974-LP-1-0-20-R18
LED RED DIFFUSED 0805 SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

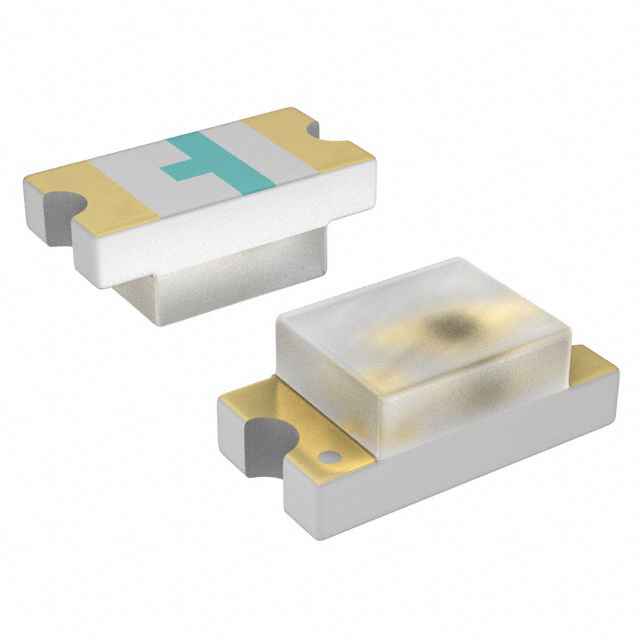

ams-OSRAM USA INC. CHIPLED 0805 LH-R974-LP-1-0-20-R18 is a red diffused LED designed for surface mount applications. This component features a dominant wavelength of 645nm and a peak wavelength of 660nm, with a forward voltage of 1.8V at a test current of 20mA, producing a millicandela rating of 41mcd. The 0805 (2012 Metric) package measures 2.00mm x 1.25mm with a height of 0.90mm. The diffused lens, measuring 1.30mm x 1.25mm, provides a wide viewing angle of 160°. This discrete LED is commonly utilized in industrial automation, medical devices, and consumer electronics for indication purposes. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: CHIPLED 0805RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Red |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 41mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Height (Max) | 0.90mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 645nm |
| Supplier Device Package | 0805 |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.30mm x 1.25mm |
