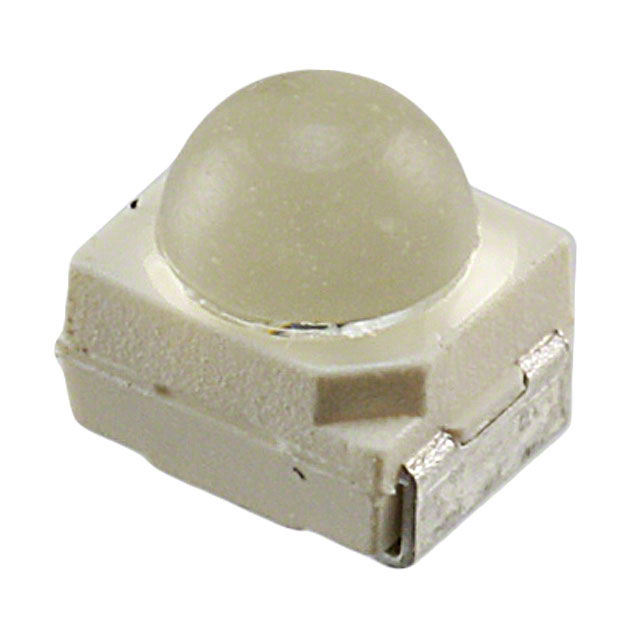

LG T656-R1S2-24-Z
LED TOPLED 570NM GREEN 2PLCCManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
ams-OSRAM USA INC. TOPLED® with Lens series, part number LG-T656-R1S2-24-Z, is a discrete LED component designed for indication applications. This 570nm dominant wavelength green LED features a 2-PLCC surface mount package with a typical forward voltage of 2V and a test current of 20mA, yielding a millicandela rating of 196mcd. The lens style is round with a flat top, measuring 2.60mm in diameter, contributing to a 60° viewing angle. The component's dimensions are 3.20mm L x 2.80mm W, with a maximum height of 3.50mm. It is supplied in Tape & Reel (TR) packaging. This component is suitable for use in automotive, industrial, and consumer electronics sectors requiring reliable visual feedback.
Additional Information
Series: TOPLED® with LensRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Green |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 196mcd |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 3.50mm |
| Wavelength - Peak | 572nm |
| Wavelength - Dominant | 570nm |
| Supplier Device Package | 2-PLCC |
| Lens Style | Round with Flat Top |
| Lens Size | 2.60mm Dia |
