LG M47K-H1J2-24-Z
LED GREEN CLEAR SMD BOTTOM ENTRYManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

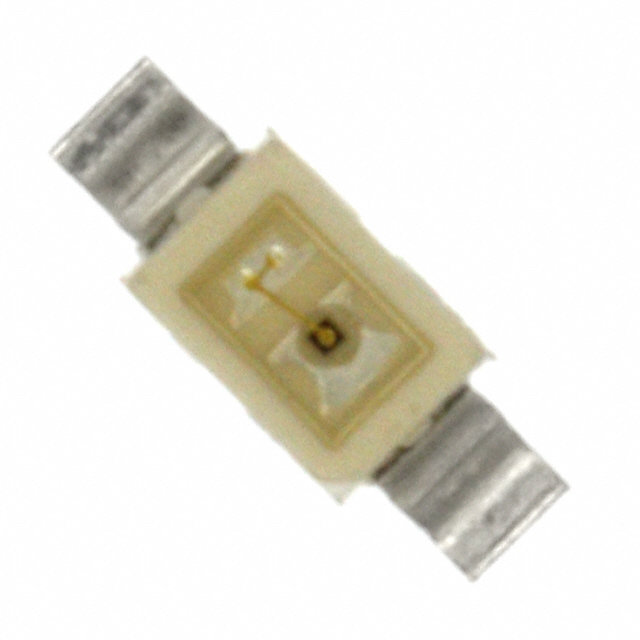

The ams-OSRAM USA INC. Mini TOPLED® Santana series LG-M47K-H1J2-24-Z is a discrete surface-mount LED designed for indication applications. This component features a green emission with a dominant wavelength of 570nm and a peak wavelength of 572nm. It operates with a typical forward voltage of 1.8V at a test current of 2mA, achieving a millicandela rating of 4.95mcd. The LED is housed in a 2-SMD, Z-Bend package with a bottom entry mounting type. Its clear, colorless lens has a rectangular shape with a flat top, measuring 1.50mm x 1.00mm, and provides a wide viewing angle of 120°. The package dimensions are 4.00mm in length and 1.40mm in width, with a maximum height of 1.50mm. This LED is supplied on tape and reel (TR) and finds application in automotive, industrial, and consumer electronics sectors requiring reliable visual feedback.
Additional Information
Series: Mini TOPLED® SantanaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | Green |
| Size / Dimension | 4.00mm L x 1.40mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 4.95mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Colorless |
| Current - Test | 2mA |
| Viewing Angle | 120° |
| Height (Max) | 1.50mm |
| Wavelength - Peak | 572nm |
| Wavelength - Dominant | 570nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 1.00mm |
