LG 3360-HM-1-0-10-BULK
LED 3MM 570NM GREEN DIFF RADIALManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

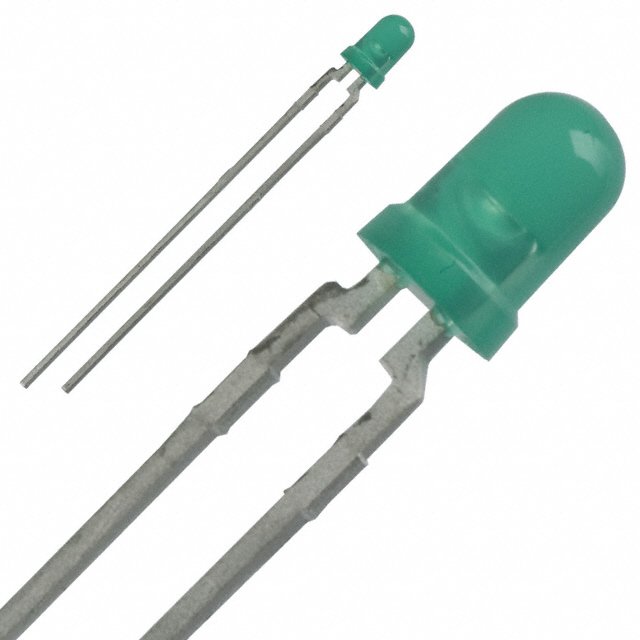

The ams-OSRAM USA INC. LG-3360-HM-1-0-10-BULK is a 3mm T-1, diffused, round green LED designed for through-hole mounting. This discrete indicator component features a dominant wavelength of 570nm and a peak wavelength of 572nm, providing a typical forward voltage of 2.0V at a test current of 10mA. The millicandela rating is 15mcd with a wide viewing angle of 70°. This radial package is supplied in bulk. Applications for this component are found in industrial control, consumer electronics, and automotive signaling.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 15mcd |
| Voltage - Forward (Vf) (Typ) | 2.0V |
| Current - Test | 10mA |
| Viewing Angle | 70° |
| Height (Max) | - |
| Wavelength - Peak | 572nm |
| Wavelength - Dominant | 570nm |
| Supplier Device Package | T-1 |
| Lens Style | Round |
| Lens Size | 3mm, T-1 |
