LG 3341-KQ-1-0-10-BULK
LED 3MM 570NM GREEN CLR RADIALManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

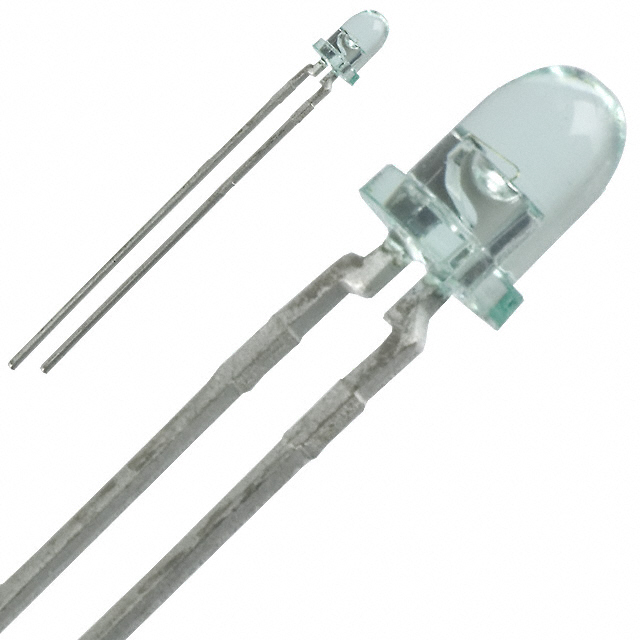

ams-OSRAM USA INC. LG-3341-KQ-1-0-10-BULK is a 3mm (T-1) clear lens, radial leaded LED designed for indication applications. This discrete component emits green light with a dominant wavelength of 570nm and a peak wavelength of 572nm. Operating at a typical forward voltage of 2.0V and a test current of 10mA, it achieves a luminous intensity of 60mcd. The LED features a 40° viewing angle and is supplied in bulk packaging for high-volume assembly. This component is suitable for use in industrial automation, consumer electronics, and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 60mcd |
| Voltage - Forward (Vf) (Typ) | 2.0V |
| Current - Test | 10mA |
| Viewing Angle | 40° |
| Height (Max) | - |
| Wavelength - Peak | 572nm |
| Wavelength - Dominant | 570nm |
| Supplier Device Package | T-1 |
| Lens Style | Round |
| Lens Size | 3mm, T-1 |
