LCY TWTG-VIAZ-5F5G-1-20-R33-Z
LED YELLOW DIFFUSED 2PLCC SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
The ams-OSRAM USA INC. TOPLED® Black Surface LCY-TWTG-VIAZ-5F5G-1-20-R33-Z is a discrete yellow LED designed for surface mount applications. This 2-PLCC package component features a diffused lens with a typical forward voltage of 3.05V and a test current of 20mA, producing a luminous intensity of 1385mcd. The LED measures 3.20mm L x 2.80mm W with a height of 2.00mm, and offers a wide viewing angle of 110°. Commonly utilized in automotive, industrial automation, and general lighting applications, this component is supplied in Tape & Reel packaging.
Additional Information
Series: TOPLED® Black SurfaceRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Yellow |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1385mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.05V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 110° |
| Height (Max) | 2.00mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
Request a Quote
Clients Also Buy

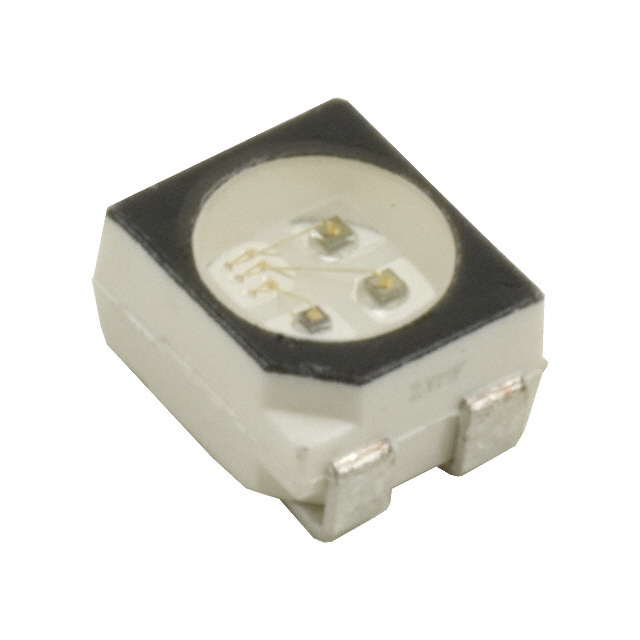

LA T68B-T1V1-34-Z
