LCW JNSH.PC-BRBT-5L7N-1
LED NEUTRAL WHITE DIFFUSED SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

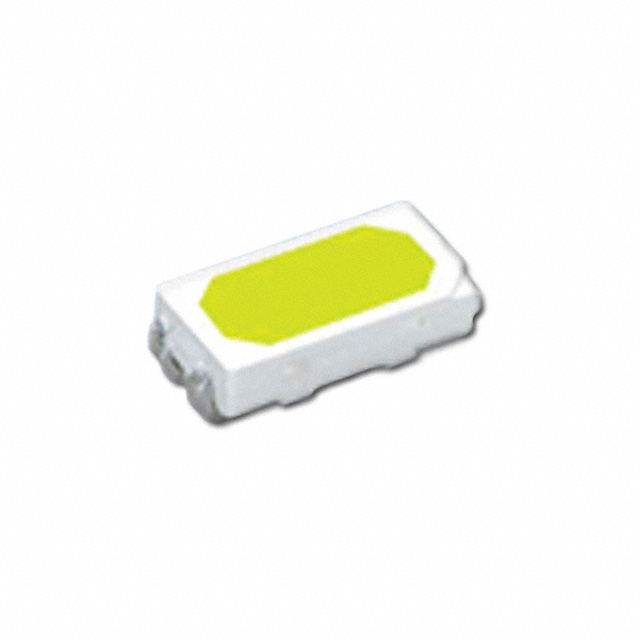

ams-OSRAM USA INC. DURIS® E 3 series LCW-JNSH-PC-BRBT-5L7N-1 is a neutral white diffused SMD LED designed for indication applications. This component features a typical forward voltage of 3.05V and a current rating of 20mA during testing, delivering a millicandela rating of 2345mcd. The LED is housed in a 2-SMD, J-Lead package with a diffused lens measuring 2.30mm x 1.15mm, providing a wide 120° viewing angle. Its dimensions are 3.00mm L x 1.40mm W, with a maximum height of 1.30mm. The DURIS® E 3 series is suitable for various industrial and consumer electronics applications requiring reliable LED illumination. This component is supplied in Tape & Reel packaging.
Additional Information
Series: DURIS® E 3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | White, Neutral |
| Size / Dimension | 3.00mm L x 1.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2345mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.05V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 4000K |
| Supplier Device Package | SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.30mm x 1.15mm |
