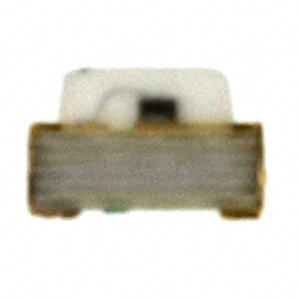

LB V19G-P2R1-35-1
LED BLUE DIFFUSED SMD R/AManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
The ams-OSRAM USA INC. FIREFLY® LB-V19G-P2R1-35-1 is a blue diffused SMD LED component designed for indication applications. This discrete LED operates with a typical forward voltage of 3V and a test current of 10mA, delivering a millicandela rating of 98mcd. The dominant wavelength is 470nm, with a peak wavelength of 465nm. Mounted on a right-angle surface mount configuration, the LED features a 0704 (1810 Metric) package with overall dimensions of 1.80mm L x 1.20mm W. The diffused lens, measuring 1.35mm x 0.50mm with a flat top and white lens color, provides a wide viewing angle of 155° and 135°. This component is supplied in Tape & Reel (TR) packaging and is suitable for use in industrial automation, consumer electronics, and medical equipment.
Additional Information
Series: FIREFLY®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0704 (1810 Metric) |
| Color | Blue |
| Size / Dimension | 1.80mm L x 1.20mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 98mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3V |
| Lens Color | White |
| Current - Test | 10mA |
| Viewing Angle | 155°, 135° |
| Height (Max) | 0.55mm |
| Wavelength - Peak | 465nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.35mm x 0.50mm |
Request a Quote
Clients Also Buy

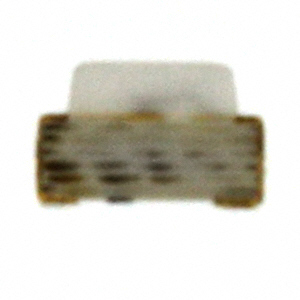

LB V193-K2M2-36-1-Z
LED BLUE DIFFUSED SMD R/A

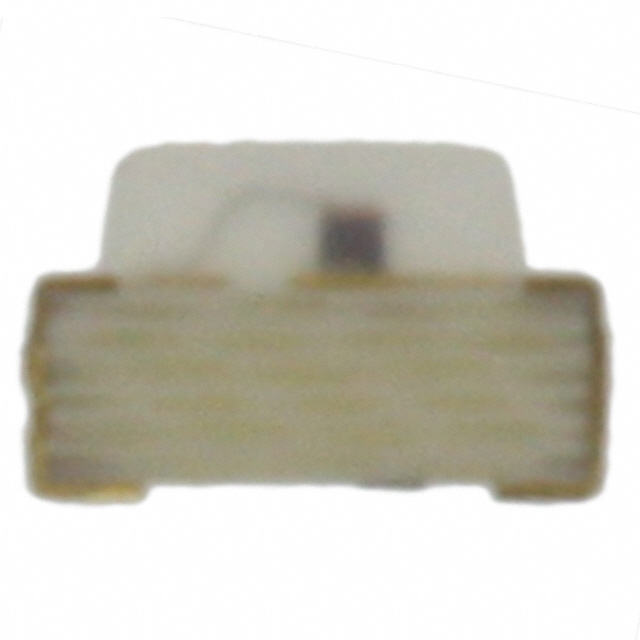

LG V196-N1P2-24
