LB T66G-U1BA-59-0-20-R33-Z
LED BLUE CLEAR 2PLCC SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More

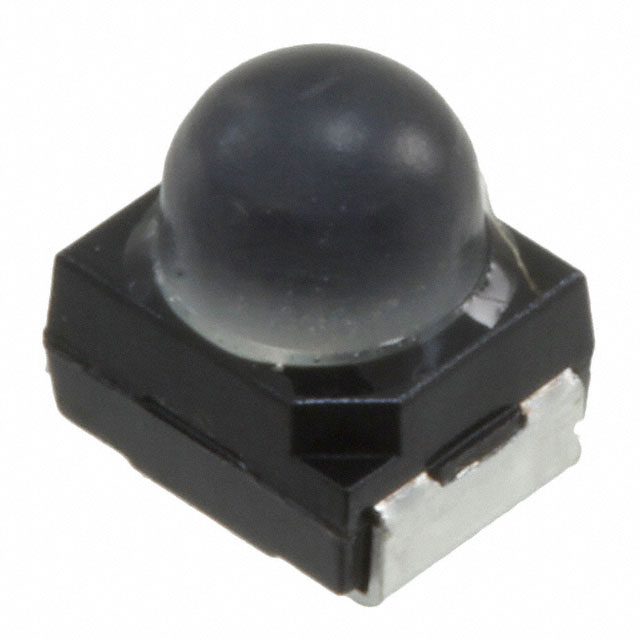

This ams-OSRAM USA INC. TOPLED® Black series discrete LED, part number LB-T66G-U1BA-59-0-20-R33-Z, features a blue 470nm dominant wavelength and 465nm peak wavelength. It offers a typical forward voltage of 3.2V and a current rating of 20mA for testing, producing a millicandela rating of 1345mcd. The component is housed in a 2-PLCC surface mount package with a clear, colorless lens measuring 2.58mm in diameter and a round, domed top style. Its dimensions are 3.20mm L x 2.80mm W with a maximum height of 3.50mm, and it has a viewing angle of 60°. This component is commonly utilized in industries such as automotive, industrial automation, and general lighting applications for indication purposes. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: TOPLED® BlackRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Blue |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1345mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 3.50mm |
| Wavelength - Peak | 465nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 2.58mm Dia |
Request a Quote
