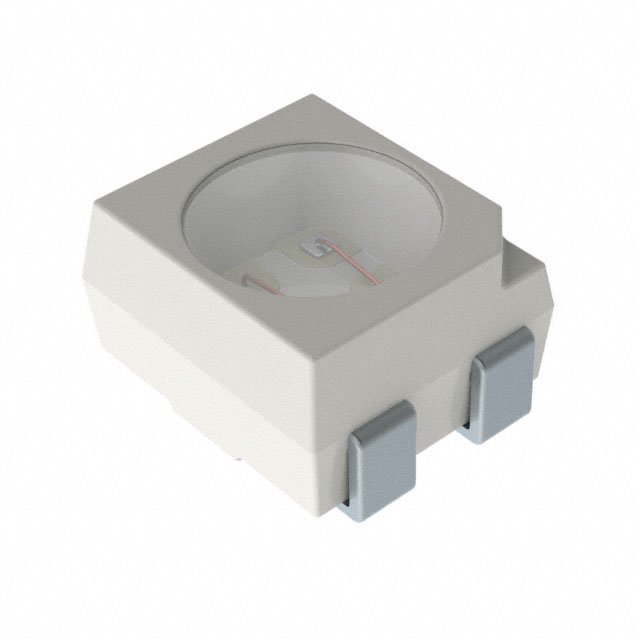

LAY T67B-T1V1-1-1+U2V2-45-1-50-R18-Z-HE
LED AMBER/YLW CLEAR 4PLCC SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
ams-OSRAM USA INC. Hyper Multi TOPLED® LAY-T67B-T1V1-1-1-U2V2-45-1-50-R18-Z-HE is a discrete LED component featuring independent amber and yellow emitters. This 4-PLCC surface-mount device provides dual-color illumination with a dominant wavelength of 617nm for amber and 589nm for yellow. The device operates with a typical forward voltage of 2.1V for amber and 2.2V for yellow, at a test current of 50mA for each color. The clear, colorless lens measures 2.40mm in diameter with a round, flat-top style, offering a wide 120° viewing angle. The component dimensions are 3.20mm L x 2.80mm W x 2.10mm H (Max). This LED is suitable for applications in automotive and industrial automation where reliable visual indication is critical. It is supplied in tape and reel packaging.
Additional Information
Series: Hyper Multi TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Amber, Yellow |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | - |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Amber, 2.2V Yellow |
| Lens Color | Colorless |
| Current - Test | 50mA Amber, 50mA Yellow |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 624nm Amber, 594nm Yellow |
| Wavelength - Dominant | 617nm Amber, 589nm Yellow |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
