LA E67B-T2AA-24-1-50-R18-Z
LED AMBER CLEAR 4PLCC SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
ams-OSRAM USA INC. Power TOPLED® LA-E67B-T2AA-24-1-50-R18-Z is a discrete amber LED designed for indication applications. This 617nm dominant wavelength, surface-mount device features a 4-PLCC package with dimensions of 3.20mm L x 2.80mm W and a maximum height of 2.10mm. The clear, colorless lens has a 2.40mm diameter and a standard, round with flat top style, providing a wide 120° viewing angle. Tested at 50mA, it offers a typical forward voltage of 2.2V and a millicandela rating of 877.5mcd. This component is commonly utilized in automotive, industrial, and consumer electronics sectors for status indication and general lighting. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: Power TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Amber |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 877.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 50mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 624nm |
| Wavelength - Dominant | 617nm |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
Request a Quote
Clients Also Buy

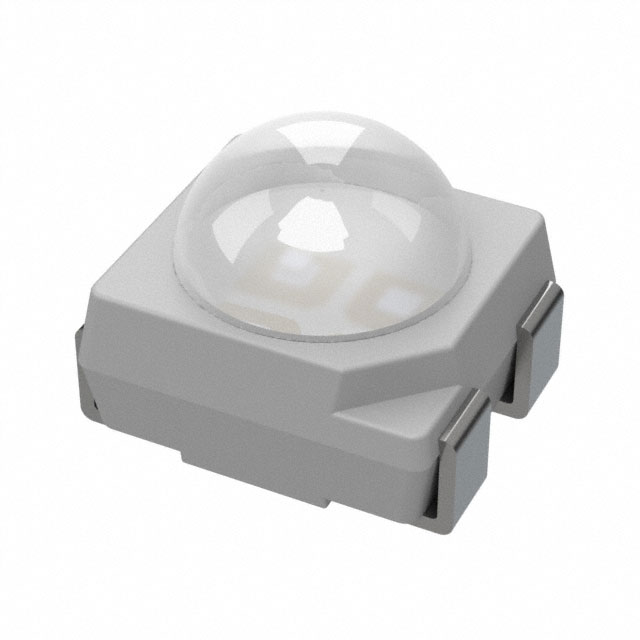

LA E63B-CBEA-24-1-50-R33-Z-SV
