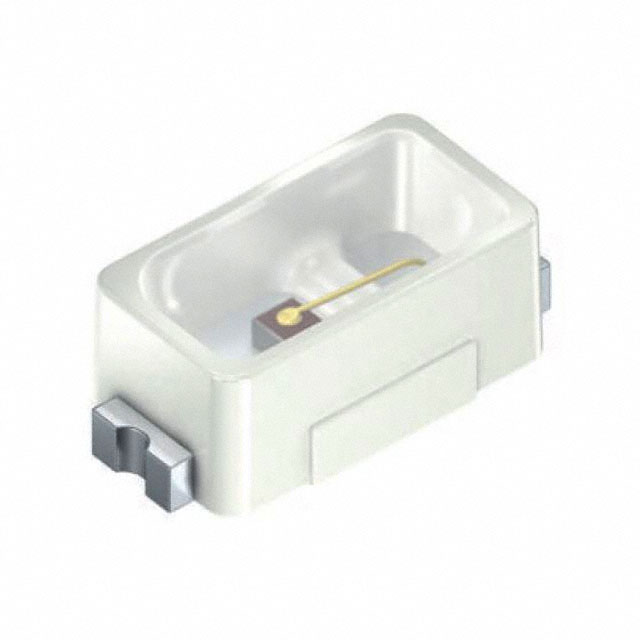

KT DELQS1.12-TIVH-36-S4A6-10-S
LED GREEN CLEAR SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
ams-OSRAM TOPLED® E1608 series KT-DELQS1-12-TIVH-36-S4A6-10-S is a green, clear, surface-mount LED with a dominant wavelength of 528nm and a peak wavelength of 520nm. This discrete component is designed for indication applications, featuring a forward voltage of 3.1V (typical) and a test current of 10mA, yielding a millicandela rating of 680mcd. The lens style is oval with a flat top, measuring 1.23mm x 0.60mm, and offers a wide viewing angle of 120°. The package is a 2-SMD, flat leads configuration with dimensions of 1.40mm L x 0.80mm W and a maximum height of 0.70mm. Qualified to AEC-Q102, this component is suitable for automotive applications. It is supplied in Tape & Reel packaging.
Additional Information
Series: TOPLED® E1608RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Color | Green |
| Size / Dimension | 1.40mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 680mcd |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Lens Color | Colorless |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 0.70mm |
| Wavelength - Peak | 520nm |
| Wavelength - Dominant | 528nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Grade | Automotive |
| Lens Style | Oval with Flat Top |
| Lens Size | 1.23mm x 0.60mm |
| Qualification | AEC-Q102 |
