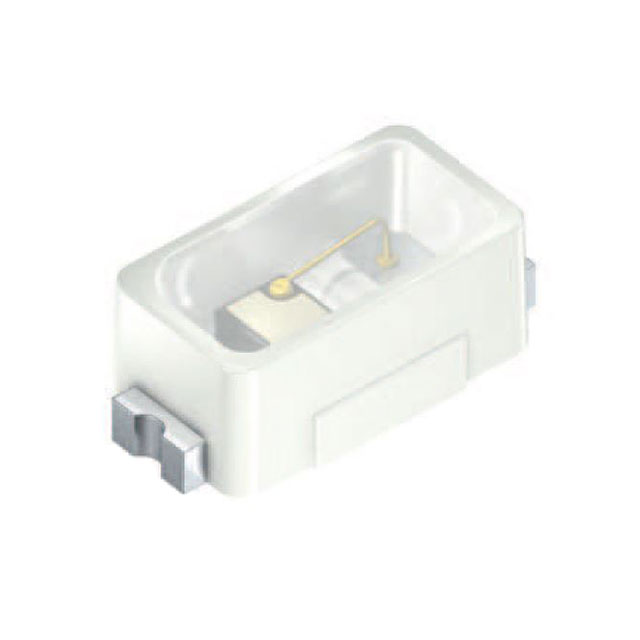

CT DELSS1.12-AABA-36-44G4
LED GREEN CLEAR SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Indication - Discrete
Quality Control: Learn More
ams-OSRAM USA INC. FIREFLY series CT-DELSS1-12-AABA-36-44G4 is a green, clear SMD LED for indication applications. This discrete component features a 530nm dominant wavelength and 525nm peak wavelength, delivering 1680mcd at a typical forward voltage of 3.2V and 20mA test current. The LED is housed in a 2-SMD, Flat Leads package with a 1.23mm x 0.60mm colorless, rectangular lens with a flat top. Its compact dimensions of 1.40mm L x 0.80mm W and a maximum height of 0.70mm make it suitable for surface mounting. This component offers a wide 120° viewing angle and is supplied in Tape & Reel. It finds application in automotive, industrial, and consumer electronics where reliable visual feedback is essential.
Additional Information
Series: FireFlyRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Color | Green |
| Size / Dimension | 1.40mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1680mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 0.70mm |
| Wavelength - Peak | 525nm |
| Wavelength - Dominant | 530nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.23mm x 0.60mm |
Request a Quote
Clients Also Buy
LW VH8G-Q2R2-4M6N-1-5-R18-Z-XX
LED
LW VH8G-R1S2-4M6N-3X4Y-5-S
LED WHITE DIFFUSED 0402 SMD R/A

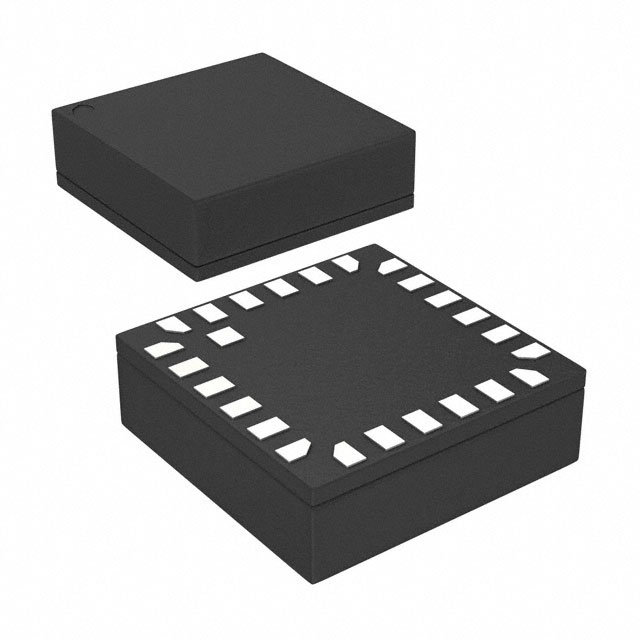

MPU-6515
