SU CZHPF1.VC-U1U4-L1L2-V1-250-R18B
OSLON UV 6060Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

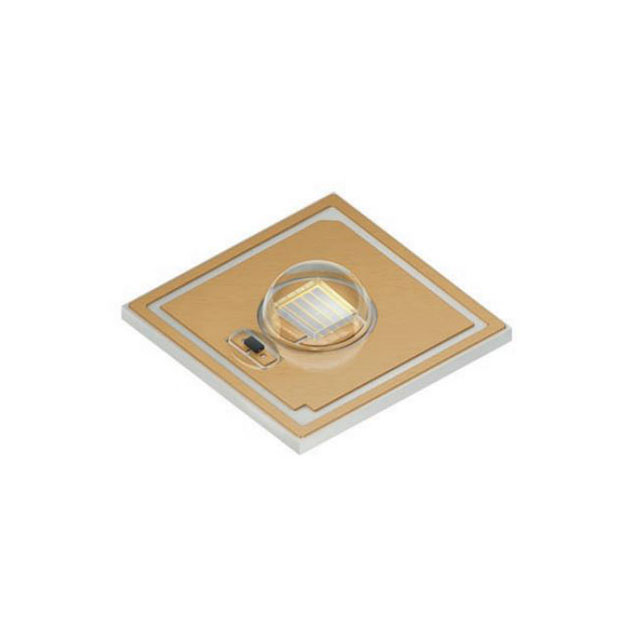

ams-OSRAM USA INC. OSLON® UV 6060 series ultraviolet emitter, part number SU-CZHPF1-VC-U1U4-L1L2-V1-250-R18B. This 2-SMD, No Lead component delivers a peak wavelength of 273nm, with a spectral range of 268nm to 278nm. Designed for surface mounting, it operates at a typical forward voltage of 6.5V and a maximum DC forward current of 350mA. The emitter features a wide 150° viewing angle and is supplied on a Tape & Reel (TR) package for automated assembly. Operating temperature range is -20°C to 60°C. This UV emitter is suitable for applications in sterilization, curing, and analytical instrumentation.
Additional Information
Series: OSLON® UV 6060RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Wavelength | 273nm (268nm ~ 278nm) |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -20°C ~ 60°C |
| Voltage - Forward (Vf) (Typ) | 6.5V |
| Viewing Angle | 150° |
| Current - DC Forward (If) (Max) | 350mA |
| Radiant Intensity (Ie) Min @ If | - |
