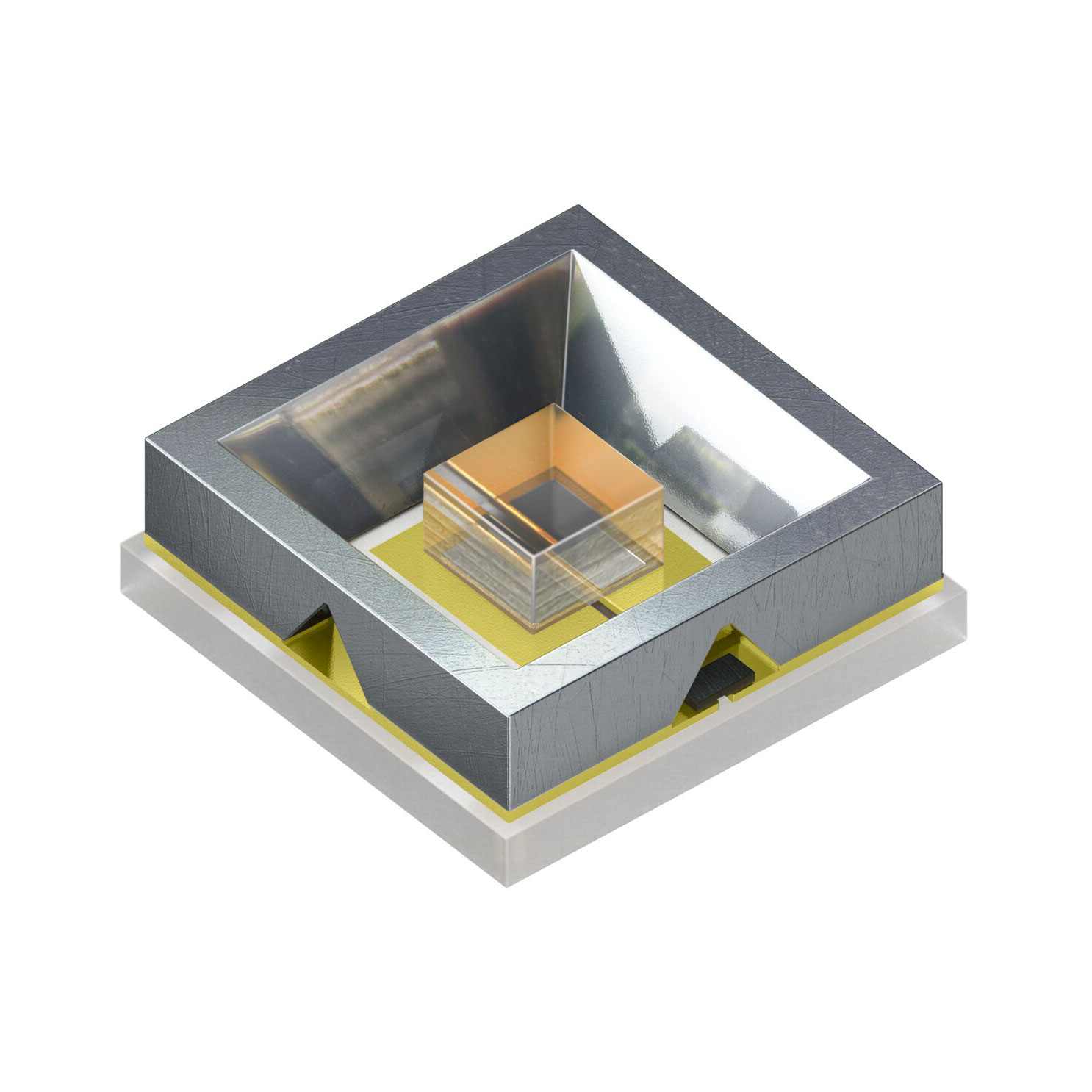

SU CULFP1.VC-CBCF-45-V3V4-350-R18
EMITTER UV 265NM 3535Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Ultraviolet (UV) Emitter 265nm (260nm ~ 270nm) 6.2V 500mA 120° 1414 (3535 Metric)
Additional Information
Series: OSLON® UV 3535RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Wavelength | 265nm (260nm ~ 270nm) |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 6.2V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 500mA |
| Radiant Intensity (Ie) Min @ If | - |
| Grade | - |
| Qualification | - |
