SU CULDN1.VC-MAMP-67-4E4F-350-R18
OSLON UV 3636Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

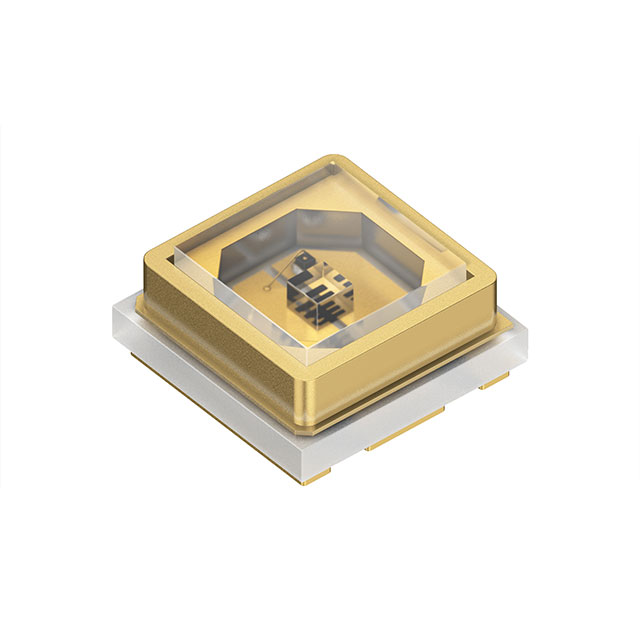

The ams-OSRAM USA INC. OSLON® UV 3636, part number SU-CULDN1-VC-MAMP-67-4E4F-350-R18, is a surface-mount ultraviolet (UV) emitter designed for demanding applications. This component delivers 275nm UV-C light with a typical forward voltage of 5.5V and a maximum DC forward current of 500mA. Featuring a wide 120° viewing angle, it is housed in a 1414 (3535 Metric) package, optimized for high-density designs. The OSLON® UV 3636 is suitable for sterilization, curing, and sensing applications across various industries. Supplied on tape and reel, this UV emitter operates within a temperature range of -40°C to 60°C.
Additional Information
Series: OSLON® UV 3636RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Wavelength | 275nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 60°C |
| Voltage - Forward (Vf) (Typ) | 5.5V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 500mA |
| Radiant Intensity (Ie) Min @ If | - |
