SFH 4883
EMITTER IR 880NM 200MA TO-46Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

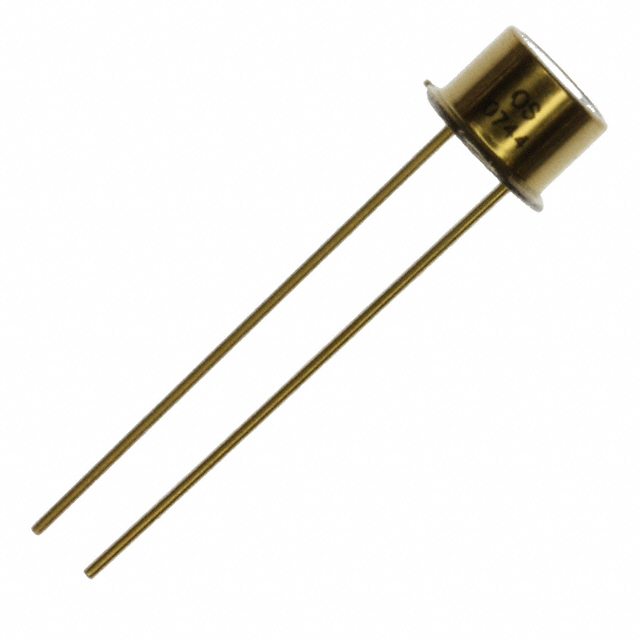

ams-OSRAM USA INC. SFH-4883 is an 880nm infrared (IR) emitter housed in a TO-46-2 metal can package with a lens top. This component features a typical forward voltage of 1.5V and a maximum DC forward current of 200mA. At 100mA, it delivers a radiant intensity of 4mW/sr with a 70° viewing angle. Operating within a temperature range of -40°C to 100°C (TA), the SFH-4883 is designed for through-hole mounting and top view orientation. Its robust construction and specific wavelength make it suitable for applications in industrial automation, security systems, and optical sensing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 70° |
| Current - DC Forward (If) (Max) | 200mA |
| Radiant Intensity (Ie) Min @ If | 4mW/sr @ 100mA |
