SFH 4881
EMITTER IR 880NM 200MA TO-46Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

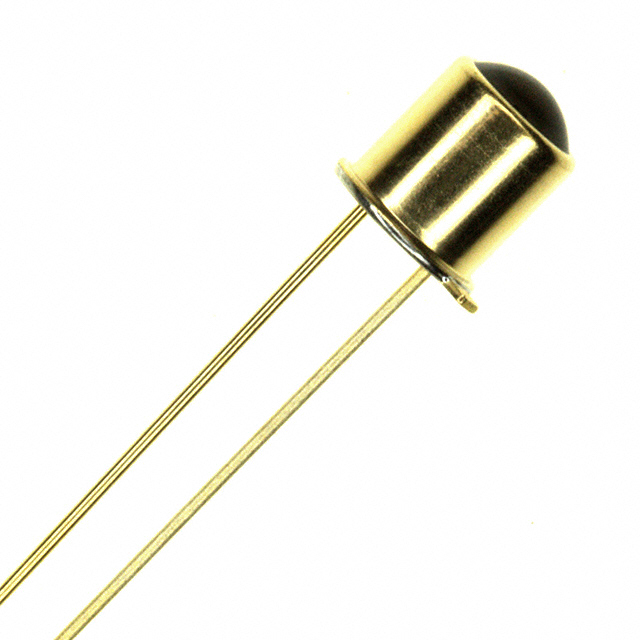

ams-OSRAM USA INC. SFH-4881 is an infrared (IR) emitter designed for demanding applications. This TO-46-2 packaged component features a 10° viewing angle and emits at a wavelength of 880nm. It operates with a typical forward voltage of 1.5V and supports a continuous forward current of up to 200mA. The emitter delivers a radiant intensity of a minimum of 40mW/sr at 100mA, with a power dissipation of 40mW/sr @ 100mA. The TO-46-2 Lens Top Metal Can package with a through-hole mounting type ensures robust integration into various systems. Operating across a wide temperature range of -40°C to 100°C (TA), the SFH-4881 is suitable for use in industrial, automotive, and medical sensing applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 10° |
| Current - DC Forward (If) (Max) | 200mA |
| Radiant Intensity (Ie) Min @ If | 40mW/sr @ 100mA |
