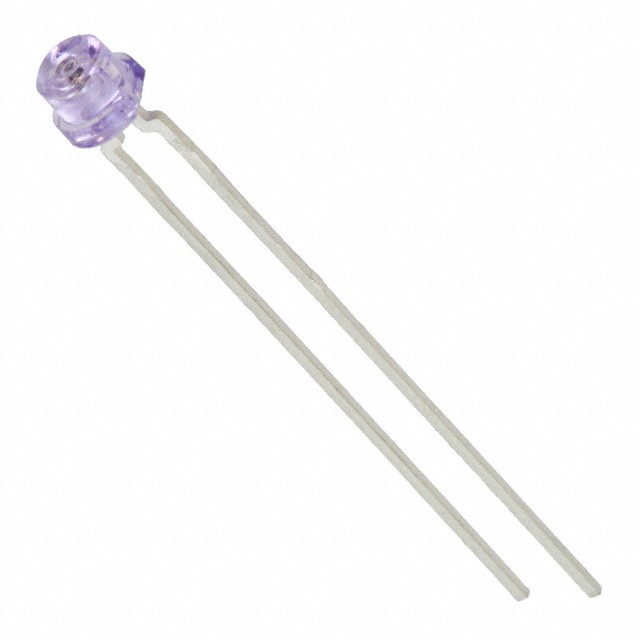

SFH 487 P
EMITTER IR 880NM 100MA T 3/4Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-487-P is an infrared (IR) emitter designed for demanding applications. This component features a peak wavelength of 880nm, delivering reliable performance in the near-infrared spectrum. It operates with a typical forward voltage of 1.5V and a maximum DC forward current of 100mA, achieving a radiant intensity of at least 2mW/sr at this current. The SFH-487-P utilizes a T 3/4 package with a through-hole mounting type, suitable for robust PCB integration. Its broad 130° viewing angle ensures wide area illumination. Operating across an extended temperature range of -40°C to 100°C, this emitter is well-suited for use in industrial automation, security systems, and optical sensing technologies. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | T 3/4 |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 130° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 2mW/sr @ 100mA |
